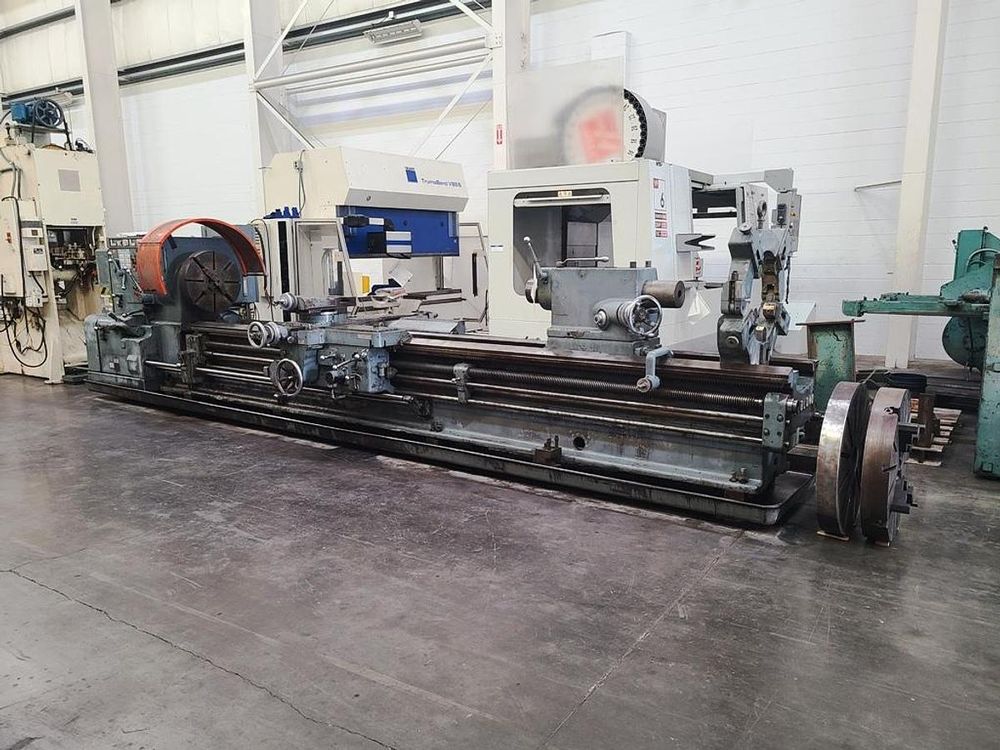

Leblond Engine Lathe 625 RPM 3220/58-NI HEAVY DUTY

Swing over ways (bed closed): 36"
Swing over ways (bed open): 58"
Center to center distance (bed closed): 204"
Center to center distance (bed open): 311"
Overall bed length: 220"
Overall bed width: 26"
Spindle nose: L3
Spindle speeds: (48) 5.5 - 625 RPM
Feeds: (48) .004" - .250" per rev
Threads: (48) 3/4 - 46 TPI (inch threading only)
Hole through spindle: 3"
Main motor: 40 HP
Voltage: 3 phase, 60 cycle, 440V
Overall size: 300" L-R x 88" F-B x 75" high
Weight: 34,000 lbs

Hard replaceable ways
Taper attachment
Rapid traverse
2-speed tailstock
Spindle jog
45" diameter face plate
33" diameter face plate
32" diameter 4-jaw chuck
24" diameter 4-jaw chuck
20" through hole diameter 5-post, bronze bushing
Coolant pump
Coolant pan (machine is bolted to steel blocks welded inside the coolant pan)
Manual (purchased from LeBlond)
