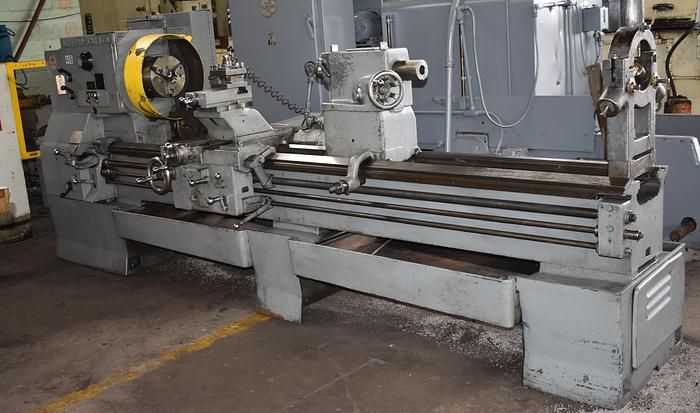

Leblond Engine Lathe 720 RPM 24 REGAL ENGINE LATHE

LEBLOND 24 REGAL ENGINE LATHE

Hole Through Spindle: 2.2"
Swing Over Bed Ways, Actual: 32"
Swing Over Cross-Slide: 24.25"
Distance Between Centers: 96"
Cross-Slide Cross-Feed Travel: 13"
Compound Rest Travel: 4.75"
Tailstock Spindle Diameter: 3.125"
Tailstock Spindle Taper: #5 MT
Tailstock Spindle Travel: 7.5"
Spindle Speeds (12): 18 to 720 RPM
Carriage Longitudinal Feeds (48): 0.0036 to 0.205 IPR
Thread Changes (48): 2 to 112 TPI
Electrical System: 220-440 V / 3 Phase / 60 Hz
Approximate Weight: 10,000 lbs
Approximate Floor Space: 14'2" length x 4'4" depth
Taper Attachment
Servo-Shift Preselect Speed Change
3" Factory Installed Risers
18" 4-Jaw Chuck with Jaws
9" 3-Jaw Chuck with Jaws
Turret Depth Stops
Steady Rest
Tool Post
Replaceable Hardened and Ground Ways
Threading Dial
Full Length Coolant-Chip Pan
