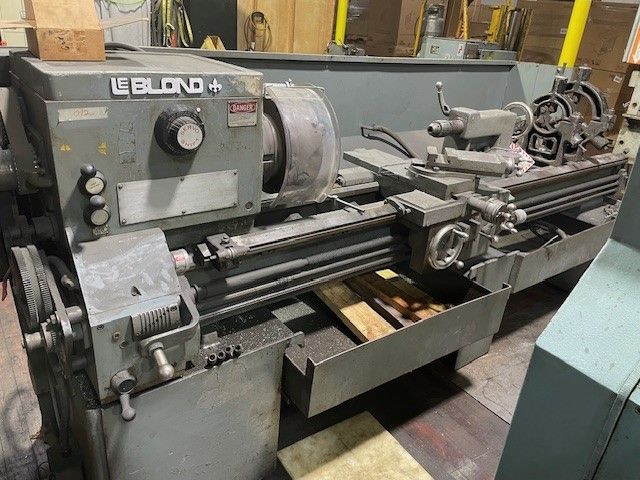

Leblond Geared Head Engine Lathe with Servo-Shift 1600 RPM LEBLOND REGAL 19” x 78”

LEBLOND REGAL 19” x 78”
Year 1979

Swing Over Bed & Carriage Ways: 19-1/4”
Swing Over Cross Slide: 12-1/4”
Distance Between Centers: 78”
Spindle Speeds (12): 40 to 1600 RPM
Hole Thru Spindle: 3-1/16”
Spindle Nose: L-2
Cross Slide Travel: 11-1/4”
Compound Rest Travel: 4-3/8”
Feeds (48): .0018 to .104 IPR

Threads
Inch (Gear Drive Only) – (48): 2 to 112 TPI
Metric (Gear Drive Only) – (16): 25 to 12 mm

Tailstock Spindle Taper: #4 MT
Tailstock Spindle Travel: 7”

Equipment
12” 3-Jaw Universal Chuck with 2-Piece Reversible Top Jaws
12” 4-Jaw Independent Chuck with Solid Reversible Jaws
1/2” to 6” Capacity Steady Rest
6” to 9-1/2” Capacity Steady Rest
Spanner Wrench for L-2 Spindle Nose
Full-Length Rear Guard
Hardened & Ground Carriage Ways
Micrometer Carriage Stop
Threading Dial
Inch/Metric Dials on Compound & Cross Slide
Removable Chip Pans
Copy of Operators/Parts Manual
Motor and Controls- 10 HP 3/60/220-440 Volt AC
Floor Space: 137” L-R x 50” F-B
Weight: 4,500 Lbs. (Approx.)
