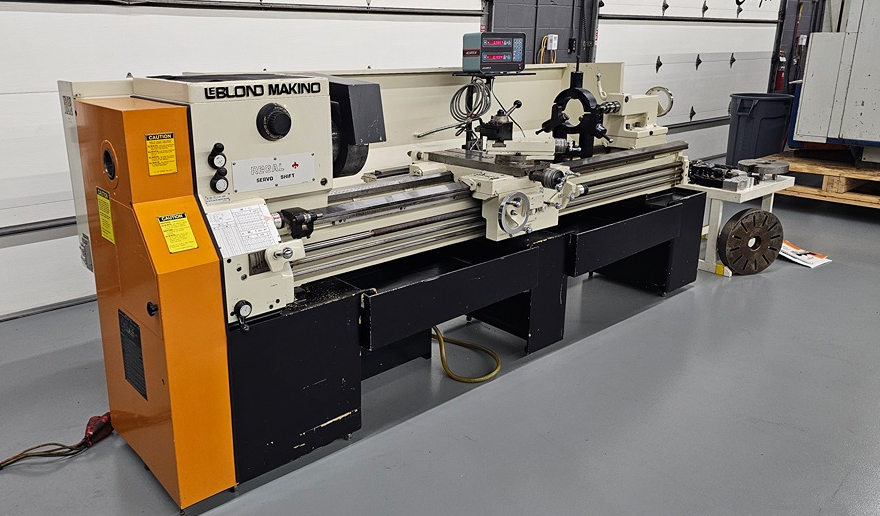

Leblond Makino Engine Lathe 1600 RPM 19 REGAL 19X78

Swing over bed: 19 1/4 in
Swing over cross slide: 12 1/4 in
Distance between centers: 78 in
Spindle bore: 3 1/16 in
Bed width: 14 3/8 in
Spindle nose: D1-8 camlock
Spindle speeds: 40 – 1600 RPM
Number of spindle speeds: 12
Longitudinal feed range: 0.0018 – 0.104 IPR
Cross feed: half of longitudinal values
Threading range inch: 2 – 112 TPI
Threading range metric: 0.25 – 14 mm
Tailstock spindle diameter: 2 7/16 in
Tailstock spindle travel: 7 in
Tailstock taper: Morse #5
Main motor power: 10 HP
Electrical requirement: 440 V 3 phase
Weight: 4,950 lb
Machine dimensions: 142 in L x 50 in W x 51 in H
2 axis Acu-Rite digital readout
Inch / metric threading
Change gears
Taper turning attachment
12 in 3 jaw Cushman chuck
17 in face plate
12 in dog plate
5C wheel operated collet chuck
6 in roller type steady rest
Aloris quick change toolpost
6 Aloris quick change holders for cutting
3 Aloris quick change holders for boring
1 Aloris quick change holder for knurling
Inch and metric handwheels
Thread dial indicator
Adjustable center tailstock
Micrometer carriage stop
Two speed heavy duty tailstock
Hardened and ground replaceable bedways
Coolant pump
Coolant tank
Chuck chip guard with limit switch
Two removable chip pans
Apron spindle control with electric brake
Gear and belt driven headstock
Feed drive safety clutch
Leveling pads
Aluminum soft jaws
Rear coolant shield full length of bed
Jacobs chucks
Live centers
Dead centers
Morse taper reducers
Machine manual
