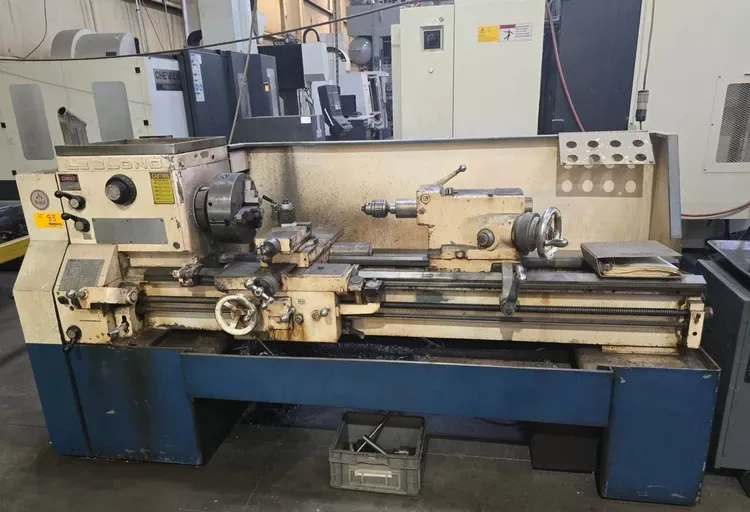

Leblond Makino Engine Lathe 1600 RPM 19 Regal

Engine Lathe
Swing 19"
Distance Between Centers 54"
Spindle Bore 3.06"
Swing Over Cross Slide 12.25"
Spindle Speeds 40–1600 RPM
Motor Power 7.5 HP
Servo Shift Hydraulic Shifting
Inch-Metric Threading
12" 4-Jaw Chuck
12" 3-Jaw Chuck
Heavy-Duty 2-Speed Tailstock
Hard Ways
Threading Dial with Gauging
Turret Depth Stop
Built-In Coolant System
Cross-Slide Cross Feed 11.25"
Tailstock Spindle Taper #4 MT
Tailstock Spindle Diameter 2.4375"
Tailstock Spindle Travel 7"
Longitudinal Carriage Feeds 0.0018–0.104 IPR
Thread Changes 2–112 TPI
Metric Thread Changes 0.05–2.6 MMPR
Overall Dimensions 113" x 50"
Weight 4440 lbs
