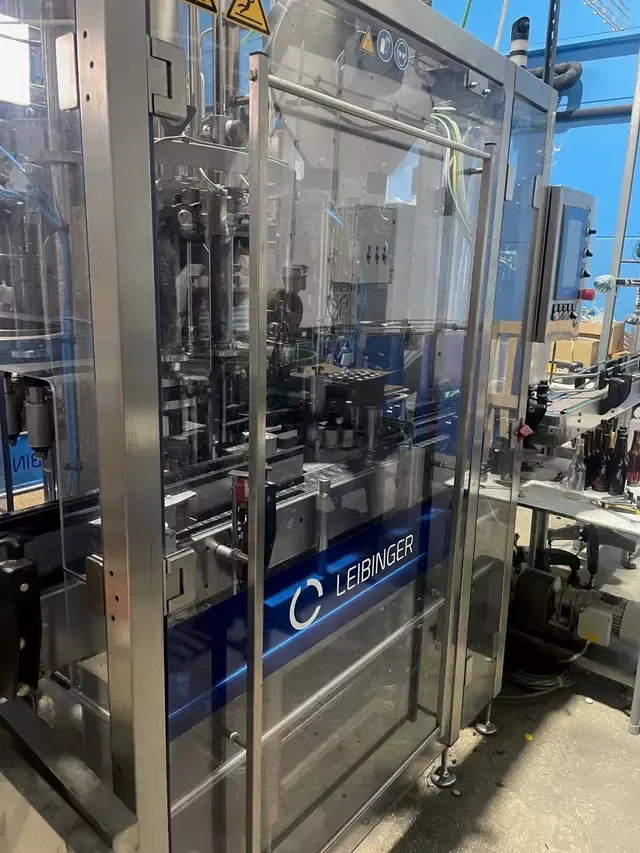

Leibinger 12-1 Enos C5000 Isobarometric Filler

Capacity: Up to 3,000 bottles/hour (330 ml)
Filling system: 12 counterpressure long-tube valves
Capping system: 4-head crown capper (26 mm)
Bottle format: 0.33 L (prepared)
Working pressure: 2.0 – 2.2 bar
Working temperature: 0 – 4 °C (optimal)
Oxygen pickup: 10–12 ppb dissolved oxygen
Vacuum system: Integrated CO₂ pre-evacuation and vacuum pump Product pump: Included
CIP system: Automatic and programmable
Machine direction: Left to right
Construction: AISI 316L stainless steel
Electrical requirements:
400 V / 3PH+N+PE / 16 A / 50 Hz

ENOS C5000 Labelling Line (2020)
Capacity: 2,000 – 6,000 bph
Bottle formats: Cylindrical bottles, max. height 185 mm, max. length 300 mm
Labelling stations: 1 (option for second station)
Label type: Self-adhesive (also supports polypropylene labels)
Bottle infeed: Screw conveyor system
Sensors: Self-adjusting photocell for transparent labels
Control system: Processor board with inverter-based speed regulation
Output system: Smoothing unit with adjustable perforated belt
Transport system: 1.5 m conveyor with traction motor
Rotary tables: 1 infeed + 1 outfeed, both motorized
Electrical control: 3 inverters (for conveyors, labeller, and filler)

BEA C26U Semi-Automatic Carton Sealer
Function: Seals top and bottom of cartons
Adjustments: Width and height adjustable
Conveyor: Plastic rollers, 1.5 – 4.5 m
