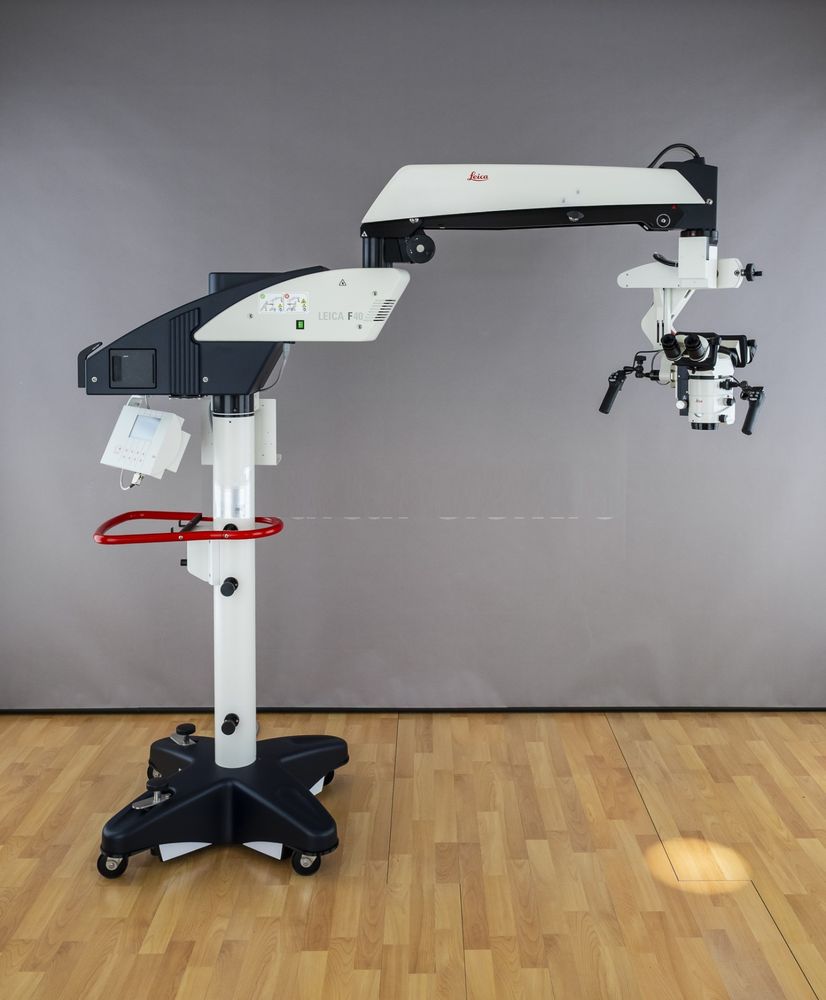

Leica M525 F40 Neurosurgical Operating Microscope

Used, electrically controlled Leica M525 surgical microscope on
an F40 mobile stand. The microscope is widely used in neurosurgery,
spine surgery, cranial surgery, plastic and reconstructive surgery,
and otolaryngology.

The microscope is fully functional and in very good technical
and visual condition.

All the devices we sell have been technically verified and
tested several times. Any parts that require replacement have
been replaced. To ensure this, our devices are tested again before
each shipment to the customer.

EQUIPMENT
Leica M525 optics
Varioskop: from 207 mm to 470 mm (varifocal lens)
F40 Mobile Tripod
Face-to-Face Bridge
Leica AutoIris
Doctor's view with adjustable angle from 30° to 150°
Assistance preview with adjustable angle from 30° to 150°
Control unit with LCD display
Control buttons on hand grips
A spare bulb module built into the microscope stand

Optional equipment:
Video track

TECHNICAL DATA
This is a high-quality surgical microscope with a large depth of field.
Its advantages include ease of use, a high-quality light source, and,
above all, excellent optics.

Microscope functions:
Smooth movement of the microscope head and arms (electromagnetic clutches)
Smooth adjustment of magnification (Zoom) and focus (Focus)
Smooth adjustment of focusing and zoom speed

Parameters:
Total microscope magnifications: from 1.2x to 12.8x
Doctor's glasses magnification: 10x
Assistant eyepiece magnification: 10x
Doctor's view with adjustable angle from 30° to 150°
Assistance preview with adjustable angle from 30° to 150°
Lens focal length: f=207 mm to 470 mm (zoom lens)
Leica AutoIris: automatic adjustment of the light beam size to
the size of the doctor's field of view
Control unit with LCD display, allowing you to
save configuration settings for 8 users
Handgrips equipped with buttons whose functions can
be freely configured
Lighting conducted using optical fiber
A spare bulb module built into the microscope stand
Main light source: Xenon 300W
Spare light source: Halogen 150W
Power supply: 100-240V, 50-60Hz

Dimensions:
Total height:
min: 194 cm
max: 238 cm
Lens distance from ground:
min: 83 cm
max: 162 cm
Maximum distance from the lens to the column: 140 cm
Base dimensions: 68 cm x 68 cm
Weight: about 280 kg
