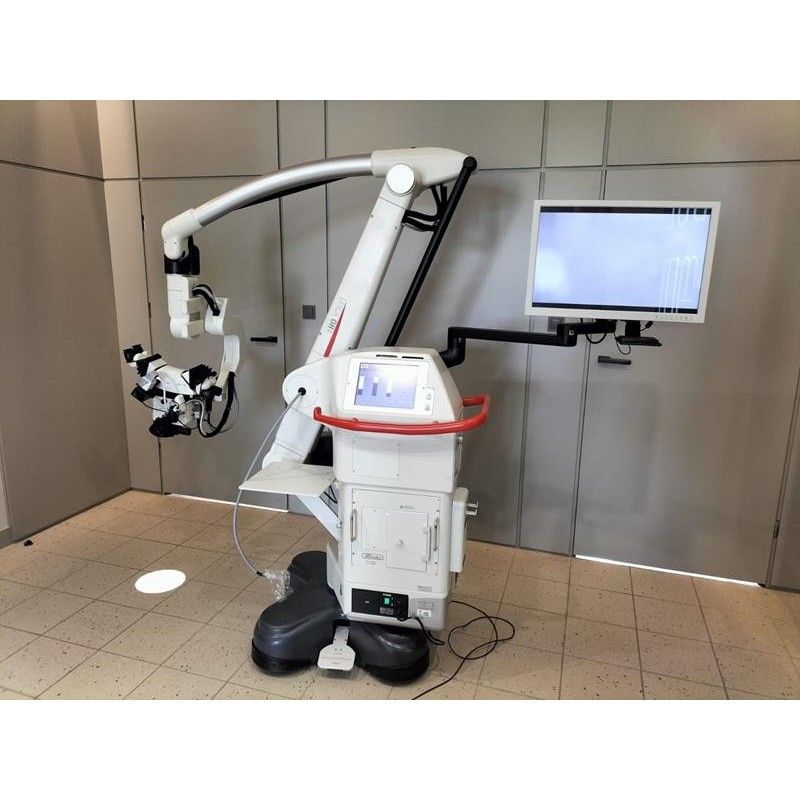

Leica M525 Surgical Microscope

Optical System: Leica OptiChrome™ – provides exceptional sharpness,
contrast, and color fidelity.
Magnification: Motorized 6:1 zoom.
Objective Lens: Motorized multifocal lens with a working distance range of
207 mm to 470 mm.
Eyepieces: Wide-field eyepieces with 10× or 12.5× magnification, ±5 diopter adjustment,
and adjustable eye cups.

Illumination
Light Source: 300 W xenon lamp.
Lighting Systems: Two independent illumination systems ensure
reliable operation during surgery.

Special Features:
AutoIris™ – automatically adjusts the illumination field to magnification and
working distance.
BrightCare™ – brightness control based on working distance to enhance patient safety.

Mechanics and Ergonomics
Balancing System: Unique balancing mechanism for excellent stability and
precise positioning.
Controls: Motorized focus and zoom operated via handgrips or foot pedal.
Mobility: Compact design allows easy maneuverability and accurate positioning of
the microscope.

User Interface and Documentation
ISUS System: Intelligent Setup System for quick customization of user settings.
Display: Graphical LCD with backlighting, up to 8 user-configurable presets,
and built-in self-diagnostics.
Documentation Modules: Optional HD recording modules and integration with
video systems.

Clinical Applications
The Leica M525 MC1 is a versatile surgical microscope suitable for
a wide range of medical fields, including:
Neurosurgery
ENT surgery
Orthopedic surgery
Plastic and reconstructive surgery
Gynecology
Dentistry
Veterinary medicine
