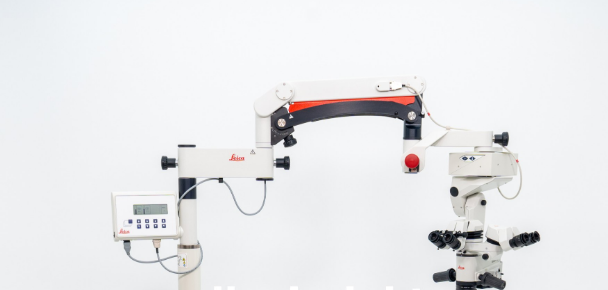

Leica M841 Ophthalmic Surgical Microscope

This used, refurbished, electrically controlled Leica M841
ophthalmic surgical microscope is mounted on a mobile stand.
It is widely used in ophthalmology.
The microscope is fully functional and in very good technical and visual condition.

All the devices we sell have been technically verified and tested several times.
Any parts that require replacement have been replaced. To ensure this,
our devices are tested again before each shipment to the customer.

EQUIPMENT
Leica OttoFlex: Red Reflex
Assist preview
Foot controller
Doctor's binocular: Leica Low 10° - 50°
Assistant's binocular with a fixed 45° inclination angle
Lens f=200 mm
Control unit
XY module
Sterilization handles

Optional equipment:
Video track

TECHNICAL DATA
This is a high-quality ophthalmic microscope with a large depth of field.
Its advantages include ease of use, a high-quality light source,
and above all, excellent optics.

Electrically controlled microscope functions:
Adjusting the magnification (zoom) and focus (focus) using the foot controller
Head movement along the XY axis
Head tilt mechanism: +15°/-95°
Adjusting the light intensity

Parameters:
Total microscope magnifications: from 3.5x to 21.0x
Doctor's glasses magnification: 10x
Assistant eyepiece magnification: 10x
Leica Low doctor's binocular with adjustable inclination angle: 10° - 50°
Assistant's binocular with a fixed 45° inclination angle
Lens focal length: f=200 mm
Leica OttoFlex: lighting module for increased red reflex
XY module reset function: return to the home position
Focus reset function: return to the starting position
A module with a spare halogen bulb built into the microscope head
Main light source: Halogen 12V/50W
Spare light source: Halogen 12V/50W
Power supply: 115-240V, 50-60Hz

Dimensions:
Total height:
min: 193 cm
max: 220 cm

Lens distance from floor:
min: 80 cm
max: 137 cm
Distance from the lens to the column: max 115 cm
Base: 77 cm x 77 cm
Weight: about 200 kg
