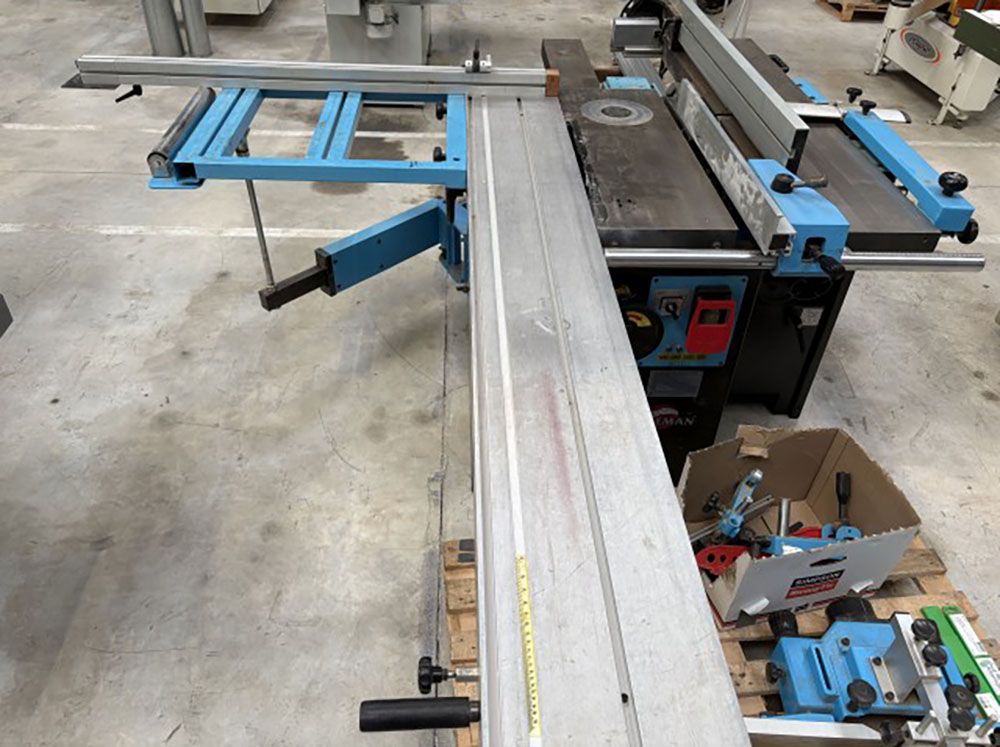

Leman COM310T

4-OPERATION COMBINED MACHINE
CAPACITIES & COMPOSITION:
1) Saw:
- Cutting length (ripping) 2000 mm
- Squaring capacity: 2300 mm
Parallel guide 805xh.90 mm
- Blade rotation speed 4500 rpm
- Tilting blades -/+45°
- Max. cutting height at 90°: 100 mm & at 45°: 80 mm
- Saw blades Ø250 to Ø315 mm Bore Ø30 mm
- Scoring saw Ø100 mm Bore Ø20 mm
- Scoring saw rotation speed 8500 rpm
- Sliding aluminum carriage 2000x270 mm flush with the blade, with handle
Graduated cross rule with 1 reversible stop
Eccentric pressure gauge

2) Planer:
- Useful working width: 310 mm
- Maximum infeed: 5 mm
- Cast iron worktop height: 850 mm
Length: 1380 mm
Noise-reducing lips
- 45° tilting fence: 1200xh.150 mm

3) Thicknesser:
- Thicknesser table (LxW): 540x305 mm
Manual table positioning
- Planing thickness 3 to 225 mm
- Minimum planing length: 150 mm
- Drive pressure rollers
Helical infeed and smooth outfeed
- Feed speed 6 m/min
- Spindle Ø70 mm, 3 HSS STD 310x25x3 mm cutters
- Rotation speed: 4800 rpm

4) Router:
- Router spindle: Ø30xh.100 mm usable
- Router rotation speeds: 1800/3000/6000/9000 rpm
- Cast iron table (LxW): 860x30 mm
With a complete set of table washers (plates)
Tool passage in the table: Ø180xh.80 mm
- Router hood with aluminum side plates with protector
Maximum acceptable tool Ø200 mm

OTHER FEATURES:
- 400V power supply. Three-phase 50Hz
- Automatic star-delta starting
- 3.8 kW planer-thicknesser motor
- 3.8 kW saw motor
- 2.8 kW router motor
- 100 mm diameter dust extraction (saw) / 100 x diameter (thicknesser) / 100 mm diameter (planer-thicknesser)
- CE marked, padlockable disconnect switch, front/rear pushbutton stops
Dimensions in operating order: 2000 x 3100 x 1100 mm
Transport dimensions (L x W x H): 2000 x 1100 x 1300 mm
Weight: 600 kg
