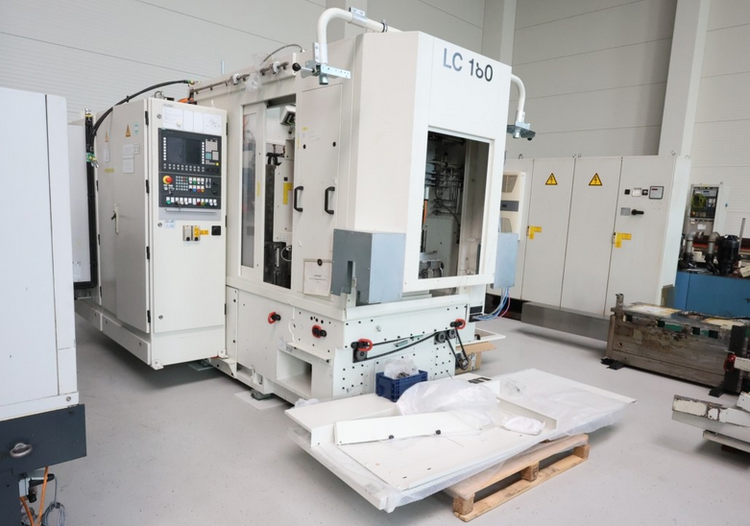

Liebherr Group LC180 800 rpm Gear Hobbing Machine - Vertical

X/Y/Z/W axis travel: axial travel 250 mm / back rest axial travel 300 mm
Control system: Siemens AG 840D sl CNC
Max wheel diameter: 180 mm
Max workpiece diameter: 180 mm
Gear width: approx. 220 mm
Max module: 3–5
Table diameter: 145 mm
Table rotation speed: 800 rpm
Radial velocity max: 5,000 mm/min
Tangential speed max: 7,500 mm/min
Clamping force max: 13 kN
Milling head swivel range: ±45°
Drive capacity: 23 kW
Tool spindle speed: 6,000 rpm
Tool diameter max: 90 mm
Tool clamping length max: 211 mm
Module hobbing max: 3
Module profile milling max: 5
Machine weight: approx. 9.5 t
Machine dimensions: 4.5 × 3.5 × 2.7 m
Dry milling equipped
Workpiece magazine
Parallel gripper
Workpiece weight form-fit max: 15 kg
Workpiece length max: 400 mm
