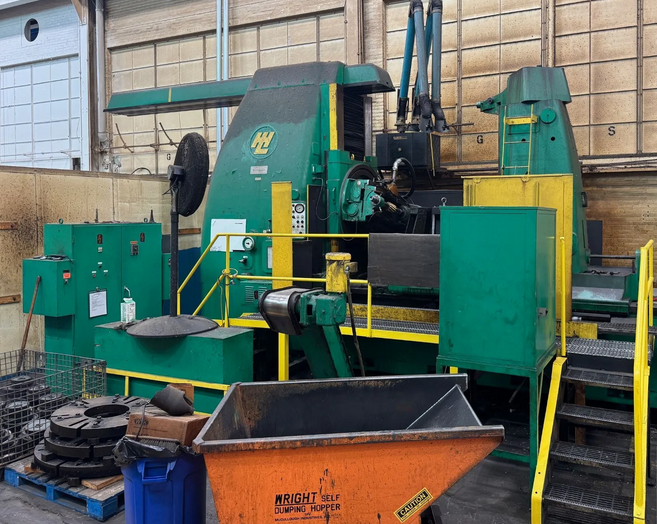

Liebherr L 2500 Variable Speed GEAR HOBBERS, VERTICAL

Spare arbors and fixtures
Change gears
Tailstock with swing center
Differential
Mist collector
Chip conveyor
Extra table plates
Single index

Maximum workpiece diameter: 98.4"
Maximum diametral pitch: 1.4
Module: 18.0
Axial travel: 44.5"
Maximum hob diameter: 13.8"
Hob arbor size: 13.8"
Hob speed: 250 rpm
Table diameter: 70.9"
Table hole diameter: 16.1"
Maximum workpiece diameter: 2500 mm
Maximum gear face width: 1130 mm
Maximum module: 18 module
Hob diameter maximum length: 350 mm
Workpiece table diameter: 1800 mm
Table hole diameter: 410 mm
Minimum distance between tool and workpiece axes: 260 mm
Maximum distance between tool and workpiece axes: 1410 mm
Dimensions: 6500 × 2900 × 4200 mm
Weight: 45 tons
