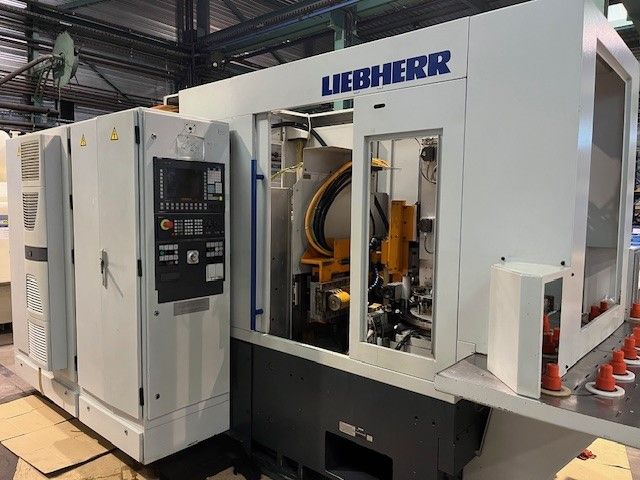

Liebherr LC150 4,500 rpm CNC Gear Hobbing Machine
Ref :
2810482-3-AW
Condition :
Used
Manufacturer :
Liebherr
Model :
LC150
Spindle Speed :
4,500 rpm
Short Description :
CNC Gear Hobbing Machine
Year(s) :
2004
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Axial travel: 250 mm
Rapid traverse: 17,000 mm/min
Milling head swivel: ±45°
Siemens 840D CNC control
Maximum workpiece diameter: 150 mm
Table diameter: 145 mm
Center distance: 10–200 mm
Maximum module: 3 mm
Maximum table speed: 800 rpm
Maximum hob speed: 4,500 rpm
Milling head motor: 19 kW
Maximum hob diameter: 80 mm
Maximum hob length: 200 mm
Tailstock travel: 300 mm
Chip conveyor
Oil mist extraction unit
Oil chiller
Steady rest with lowering device and vertical adjustment
Rotary ring loader with two workpiece grippers
Automatic loading belt system
5 milling arbors
Milling arbor Ø22 mm ×1
Milling arbor Ø27 mm ×2
Milling arbor Ø32 mm ×1
Milling arbor Ø40 mm ×1
Machine dimensions: 5.5 × 3.7 × 3.1 m
Machine weight: 9,500 kg
