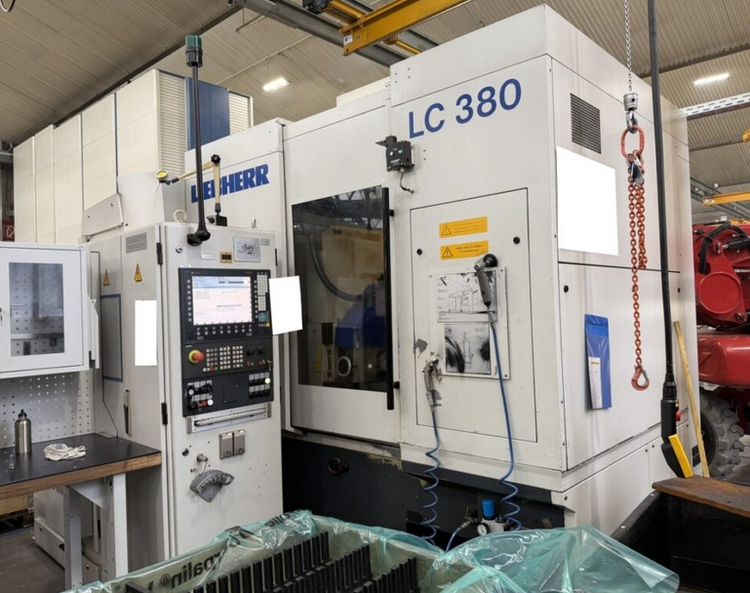

Liebherr LC380 1500 rpm Gear Hobbing Machine - Vertical
Ref :
2799326-3-AW
Condition :
Used
Manufacturer :
Liebherr
Model :
LC380
Spindle Speed :
1500 rpm
Short Description :
Gear Hobbing Machine - Vertical
Year(s) :
2007
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Last check :
06 Jul. 2026
Max wheel diameter: 380 mm
Gear width: 540 mm
Max module: 7
Control: SINUMERIK 840D
Axial travel: 600 mm
Tangential travel max: 300 mm
Table diameter: 317 mm
Table speed: 100 rpm
Milling head swivel range: ±35°
Milling spindle drive power: 27 kW
Milling spindle speed: up to 1500 rpm
Hob diameter max: 160 mm
Cutter length max: 330 mm
Cutter speed max: 3000 rpm
Work processes: axial hobbing, individual part milling
worm wheel milling, deburring
Oil volume: 100 l
