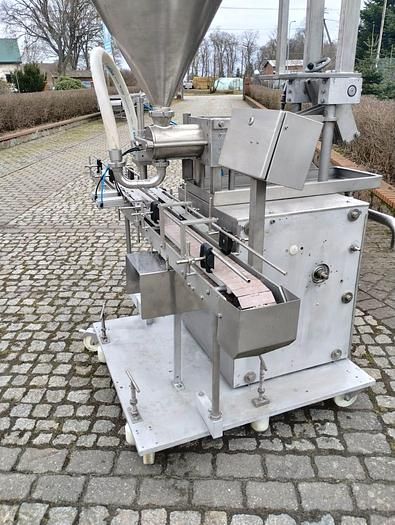

Lieder Piston spoon

Dimensions of the size:
Length – 1.350 mm;
Width – 2,600 mm;
Height – 2,700 mm:

General technical data:
Dose design – thick-walled aluminum plates;
Cladding: tray and dispenser – stainless;
Dispensing head drive – mechanical;
The whole machine on wheels;
Twisted legs for stabilizing and leveling the machine;
Main motor – 1.1 kW;

Technical data of the hopper:
Upper cross section – 900 mm;
Height – 860 mm;
Capacity of the tray – approx. 190 l;
Pushing screw motor in the tray – 0.75 kW

Technical data of the packaging feeder:
Track length – 2,600 mm;
Track width - adjustable – up to 200 mm;
Tape width – 110 mm;
Tape propulsion engine – 0.75 kW;
Pneumatic positioner of packaging at dosing.
