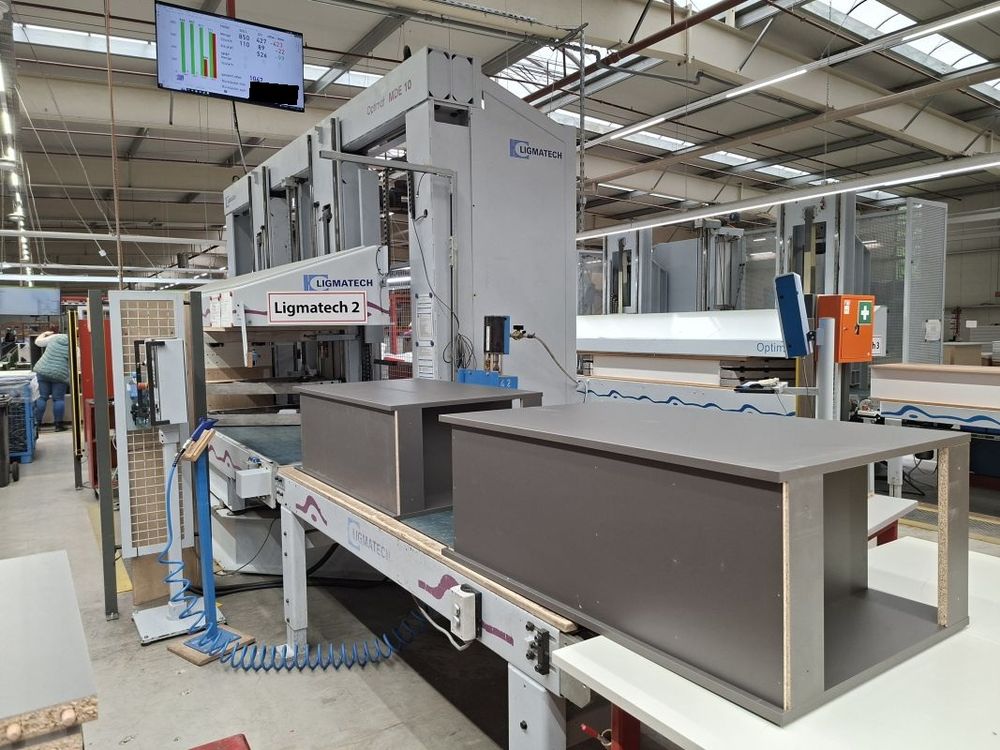

Ligmatech Optimat MDE 10

Continuous press
Casing dimensions:
- Length: 300-2500 mm
- Height: 300 - 1300 mm
- Depth: 120 - 600/800 mm

- Pressing forces are generated electrically in both the horizontal and vertical directions and can be adjusted separately
- Pressing forces are applied vertically by a pressure plate and horizontally by 3 pressure cheeks on each side
- Pressing is center-aligned and occurs at a zero line on the operator side

Positioning of the pressure cheeks:
- Upper pressure cheek via forced guidance on the upper pressure plate, optionally lowerable via a cylinder
- Middle pressure cheek freely programmable and motor-driven
- Lower pressure cheek freely programmable and movable via a common drive with the middle pressure cheek
