LMC PP3-004 1225 FFG 3 2500 x 1600 mm

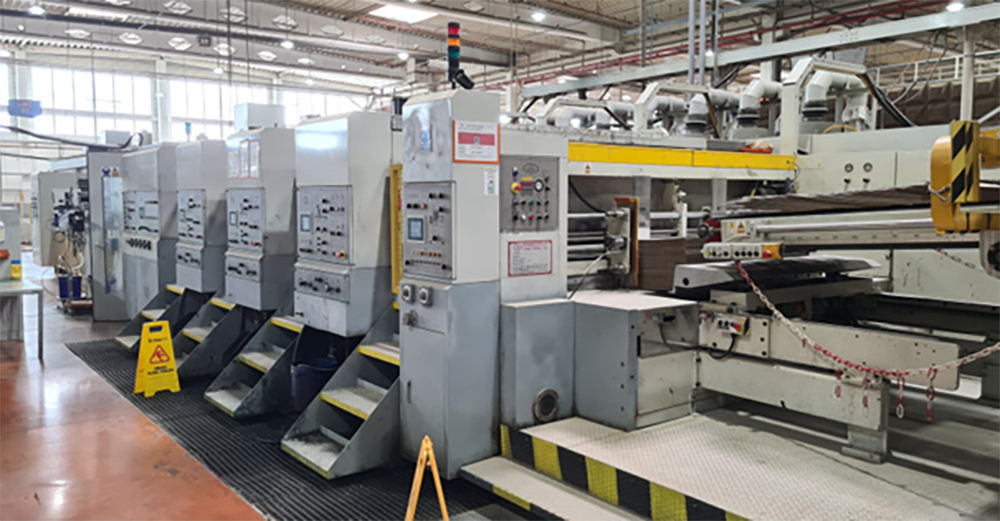

LMC PP3 (FFG) Complete Box Production Line
Prefeeder FAVALESSA REVOLVER 250
LMC PP3-004 1225 FFG
Strapping Machine SIGNODE ISB 1300 MONO
Palletizing System FANUC M-410iB/160

Machine Configuration:
Feeder
3-color printing
Rotary die-cutting
Double slotter
Folding line with bundle separator
Strapping
Palletizing

Prefeeder FAVALESSA REVOLVER 250:
Year of Manufacture: 2005
Total Weight: 8,000 kg
Installed Power: 24 kW
Air Pressure Required: 6 bar
Air Consumption: 150 l/min
Oil Pressure: 65 bar
Oil Volume: 40 liters
Max. Format: 2500 x 1600 mm
Min. Format: 600 x 280 mm

LMC PP3-004 1225 FFG
Manufactured in 2005, this LMC machine includes:
Automatic feeder with SUN Automation lead edge feeder
Three printing units
Double slotter
Rotary die-cutter
Folding line with bundle separator
Equipped with a NORDSON automatic gluing system with glue path detection

Technical Capabilities:
Max. Sheet Size: 1200 x 2500 mm
Board Thickness: Up to 9 mm
Max. Speed: 220 sheets/minute

Strapping Machine SIGNODE ISB 1300 MONO
Year of Manufacture: 2005
Total Weight: 1,750 kg
Power Supply:
400V, 3-phase, 50 Hz
460V, 3-phase, 60 Hz

Installed Power: 3–5 kVA
Air Supply: 5–7 bar

Package Size Range:
Minimum: 170 x 170 x 50 mm (W x L x H)
Maximum: 1300 x 1400 x 350 mm (W x L x H)
Max. Output: 30 packages/min
Palletizing System FANUC M-410iB/160

Installed by NE Engineering in 2005, this robotic palletizing system includes:
Horizontal turntable
Superposition station
FANUC robot with gripper head

Palletizing Capacity:
Max. Stack Height: 2200 mm
Max. Stack Footprint: 1650 x 1100 mm
Configurable stacking patterns
