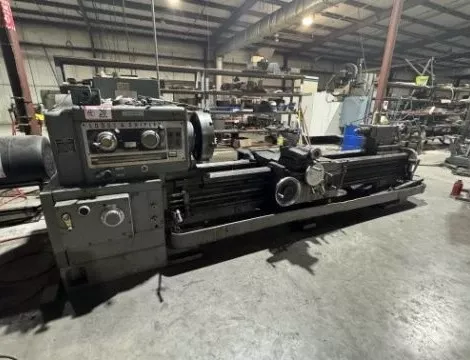

Lodge & Shipley Engine Lathe 1000 RPM RXE2516

Swing over bed 26.5"
Swing through gap 40"
Gap length 20"
Swing over cross slide 20"
Distance between centers 96"
Spindle bore 2.5"
Spindle speed range 18–1000 RPM
Spindle speeds forward 24 steps
Spindle speeds reverse 16 steps
Main motor power 30 HP
Spindle nose 8"-D1
Tailstock spindle diameter 4"
Tailstock spindle travel 11"
Tailstock taper MT5
Cross-slide travel 18.5"
Top-slide travel 5.25"
Longitudinal feed range .0025–.160 IPR
Threading range 1–64 TPI
20" 4-jaw chuck with jaws
Steady rest
Gap block and gap carriage
Replaceable hardened and ground bed ways
Replaceable hardened and ground cross slide ways
Quick change gearbox
Threading dial
Full length coolant chip pan
Coolant system
Two-speed heavy-duty tailstock
Machine dimensions 16'2" x 5'7"
Machine weight 13,500 lbs
