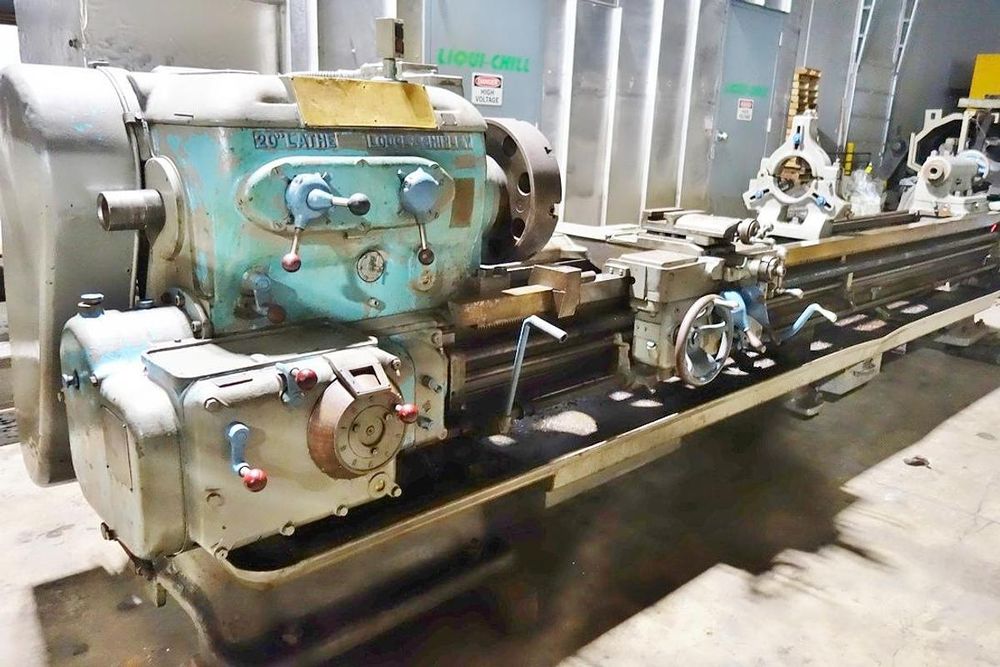

Lodge & Shipley Engine Lathe 500 RPM 20"
Ref :
2728562-3-AW
Condition :
Used
Manufacturer :
Lodge & Shipley
Type :
Engine Lathe
Spindle Speed :
500 RPM
Model :
20"
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
LODGE & SHIPLEY 20"
Distance between centers 14'
Swing over bed 24"
Spindle speeds 9 to 500 RPM (24 speeds)
Spindle nose L3
Spindle thru hole 2.5"
Feeds 2.5 to 160”/min (60 feeds)
Threads 1-64 TPI (60 threads)
Horsepower 10 HP
Electrics 220/440/3 phase
Lathe dimensions 19' x 62" x 62" H
Approximate weight 20,000 lbs
16" 3-jaw chuck with reversible jaws
20" 4-jaw chuck with reversible jaws
4-way tool post
22" face plate
8" steady rest
Taper attachment
Coolant pump
Tail stock with Morse taper
