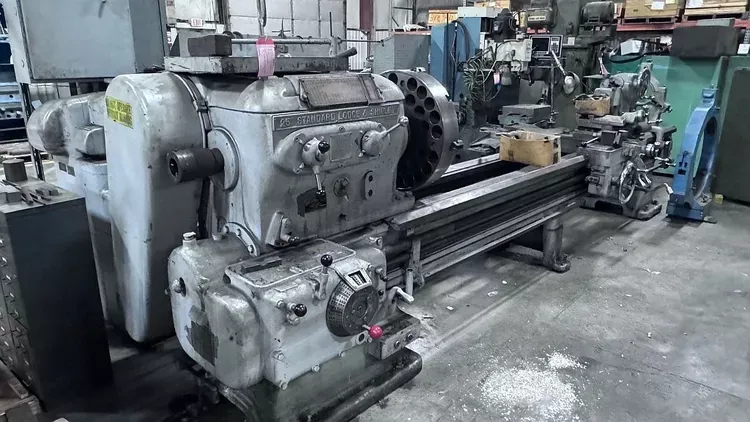

Lodge & Shipley Engine Lathe 500 RPM 25 STANDARD

Ref : 2757156-3-MT

Condition : Used

Manufacturer : Lodge & Shipley

Type : Engine Lathe

Spindle Speed : 500 RPM

Model : 25 STANDARD

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Swing over bed: 25"
Swing over cross slide: 19"
Gap swing: 35"
Distance between centers: 108"
Spindle speeds: 24 (9–500 RPM)
Spindle bore: 2.5"
Spindle nose: D1-6 camlock
Threading range: Inch threads only
Feeds: Inch feeds only
Horsepower: 15 HP
Voltage: 220/440 V, 3-phase
Frequency: 60 Hz
Dimensions: 192" x 72" x 72"
Weight: 20,000 lbs
