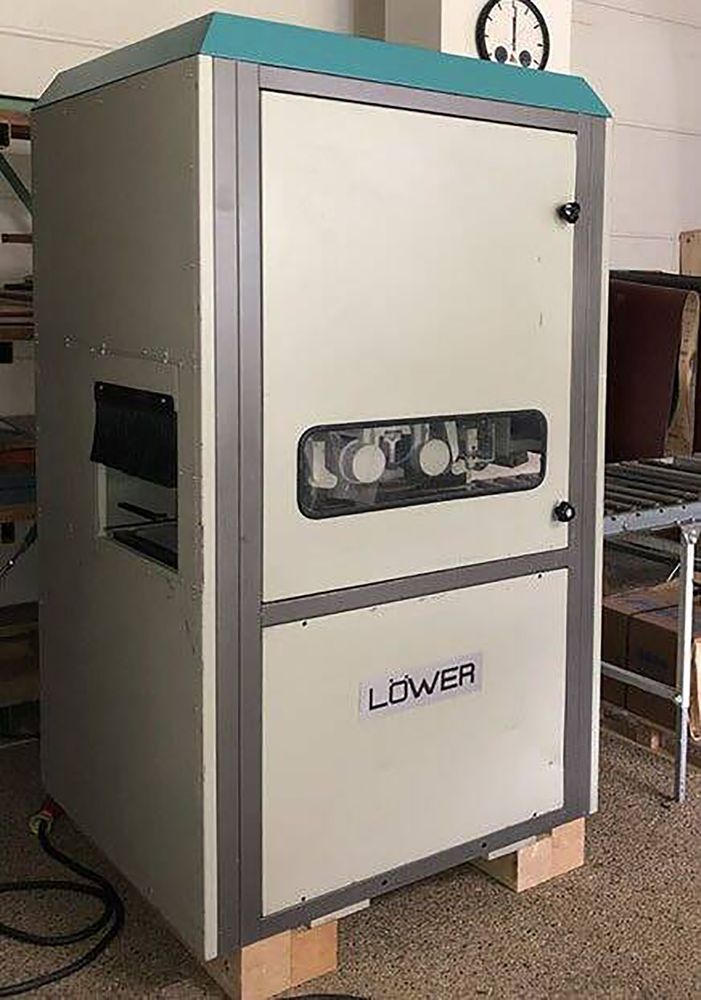

Loewer HBS 400

Versatile single-belt sander suitable for both shaping heavy laminated beams and for light calibration to size.
Sanding width max. approx. 390 mm
Sanding height max. approx. 390 mm

1 sanding shoe from above
Sanding motor 7.5 kW
Sanding belt dimensions 300 x 1800 mm

Pneumatic sanding belt oscillation and tensioning
Special HBS sanding shoe for profiling with thickness differences up to 4 mm or warped workpieces
Selector switch for adaptive grinding / calibrating

Motorized workpiece thickness adjustment with rapid traverse
Automatic workpiece thickness sensing

Conveyor belt for material feed
Feed speeds 6/11/16 m/min.
Exhaust connection, diameter 150 mm
Constant table height for use with roller conveyors
Heavy-duty, robust design
Includes several sanding belts in 60 and 100 grit
Dimensions approx. 1150 x 1020 mm LxW
Weight approx. 950 kg
