Lombardi Champion

Label size max. 250 x 250 mm
10 x 45 mm
Pile-Height 0 – 40 mm
Sheet-Thickness max. 2,5 mm
Speed 60 cuts/min.
Performance: up to 400.000 pcs/h
Positioning accuracy: 0,02 mm
Stamp adjustment: 2 -3 °
Puch power 78.000 N
Power consumption: 5,7 kW
Current consumption: 12 A (380V, 50Hz)
Working area: 960 x 2.900 mm
Weight: 1.250 kg

Equipment:

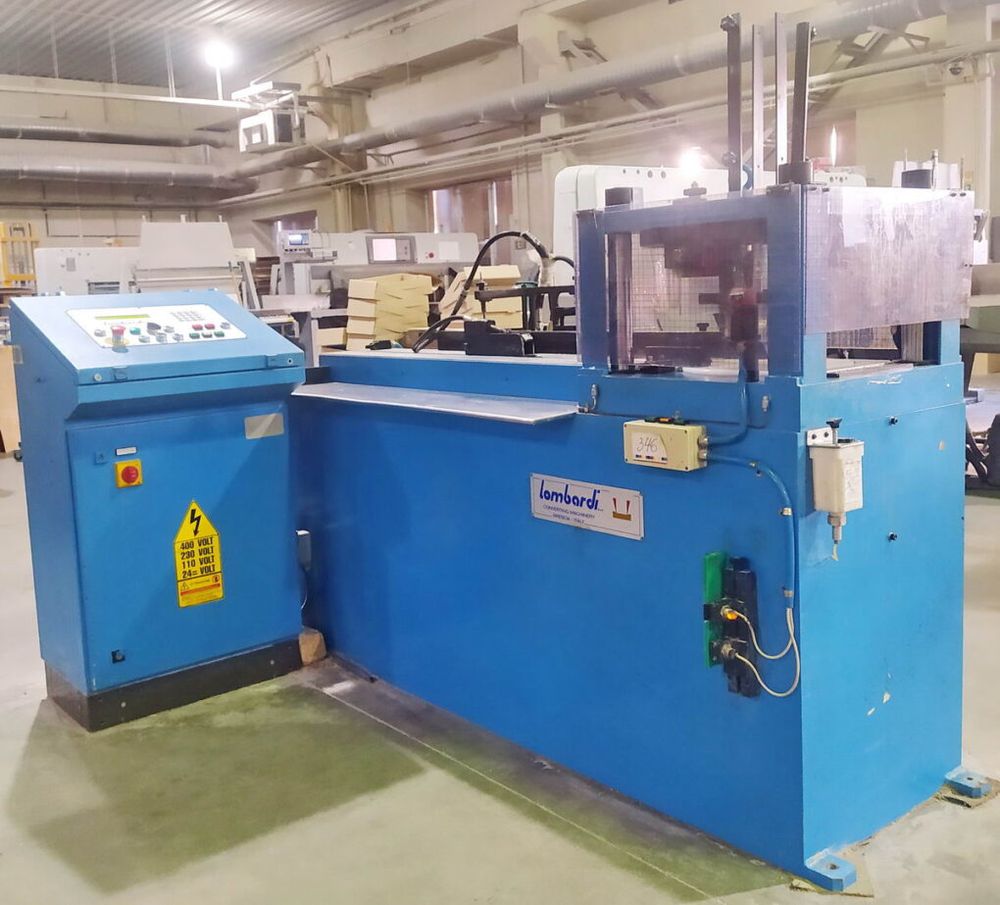

Semi-automatic label die-cutting machine
Hydraulic operation
Die-cutting of labels from pre-cut strips of material
The stack of labels is secured by a clamping device and fed horizontally into the die-cutting head
Die-cut labels are transported upwards by the tool and removed by the operator
Separate control panel with 2-button safety release
Technical documentation
