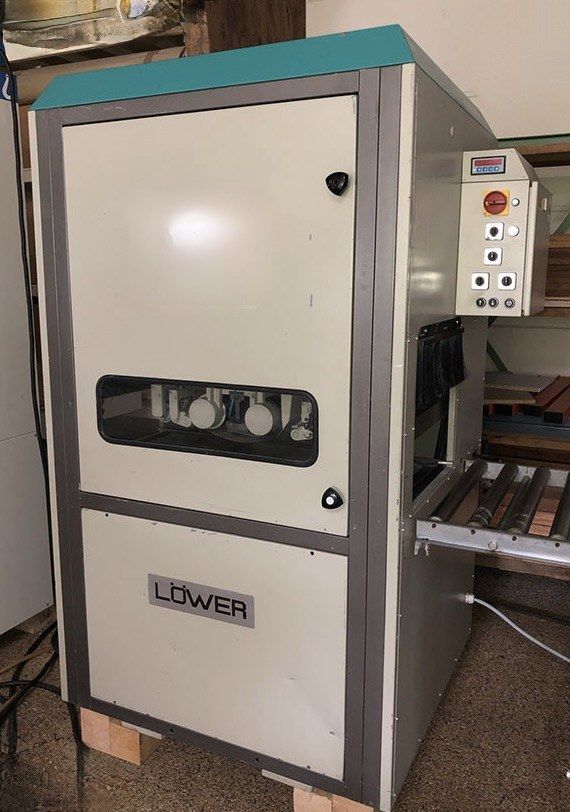

Lower HBS 400

Sanding Machine
Versatile belt sander for both fitting sanding of heavy laminated timber and for calibrating to dimensions.
Maximum sanding width: 390 mm
Maximum sanding height: 390 mm
1 sanding pad from above
7.5 kW sanding motor
Sanding belt dimensions: 300 x 1800 mm
Material feed conveyor
Feed speeds: 6/11/16 m/min
Dust extraction port, 150 mm diameter

Constant table height for use with roller conveyors
Pneumatic belt oscillation
Pneumatic belt tensioning
Special HBS grinding shoe for adjustment grinding with thickness differences up to 4 mm or for warped workpieces
Selector switch: adjustment grinding / calibration
Motorized workpiece thickness adjustment with rapid traverse
Automatic workpiece thickness sensing
Heavy-duty, robust design
Includes several grinding belts in 60 and 100 grit

Machine dimensions: L 1150 mm x W 1020 mm
Weight: 950 kg
