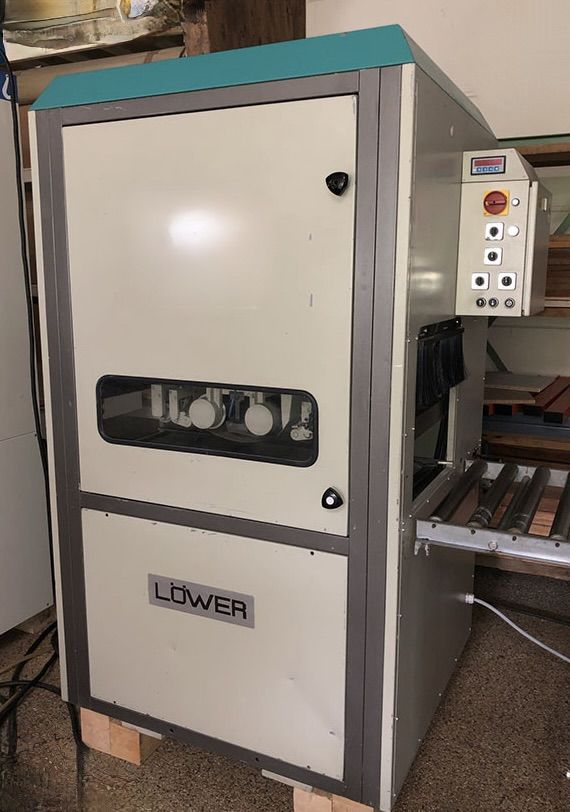

Lower HBS 400

Grinding machine
Maximum grinding width (mm) 390
Maximum grinding height (mm) 390
Grinding pad from top 1
Grinding motor (kW) 7.5
Grinding belt dimensions (mm) 300 x 1800
Material feed conveyor
Feed speeds (m/min) 6/11/16
Dust extraction port diameter (mm) 150
Constant table height
Pneumatic abrasive belt oscillation
Pneumatic abrasive belt tensioning
Special HBS grinding pad for adjustment grinding with thickness differences up to 4 mm or warped workpieces
Selector switch: Adjustment grinding / Calibration
Motorized workpiece thickness adjustment with rapid traverse
Automatic workpiece thickness sensing
Machine length (mm) 1150
Machine width (mm) 1020
Machine weight (kg) 950
CE compliant
