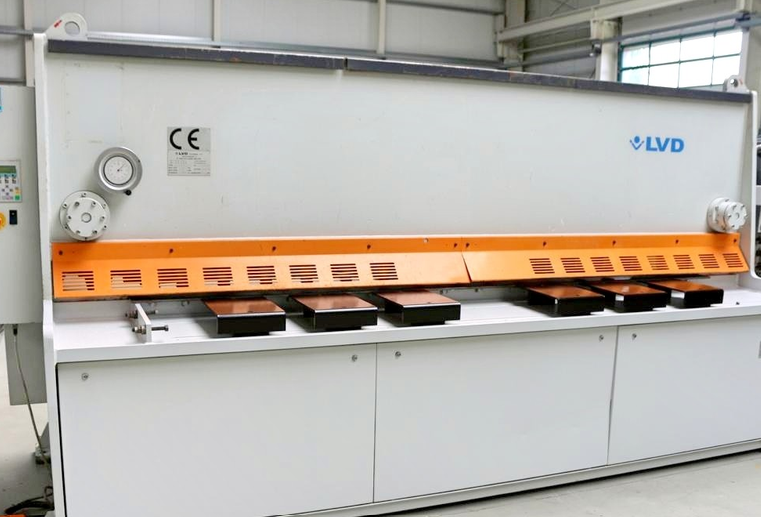

LVD HST-C 13/31

Sheet Width: 3050 mm
Max Sheet Thickness: 13.0 mm
Max Stainless Steel Thickness: 8.0 mm
Cutting Angle: 0.5°–2.5°
Strokes: 8–25 strokes/min
Backgauge Travel: 1000 mm
Control: Siemens OP 7 NC
Number of Hold-Downs: 13
Oil Tank Capacity: 300 L
Motor Power: 21.0 kW
Machine Dimensions: 3950 × 2200 × 1900 mm
Machine Weight: 8700 kg

Electro-hydraulic sheet shear
Circuit-guided design
NC motorized backgauge
Target position input
Actual position display
NC hydraulic cutting angle adjustment
Manual cutting gap adjustment
Front handwheel adjustment
Recessed grips in front support table
Front finger guard
Long side fence
Support arm
Movable foot switch
Operating manual included
