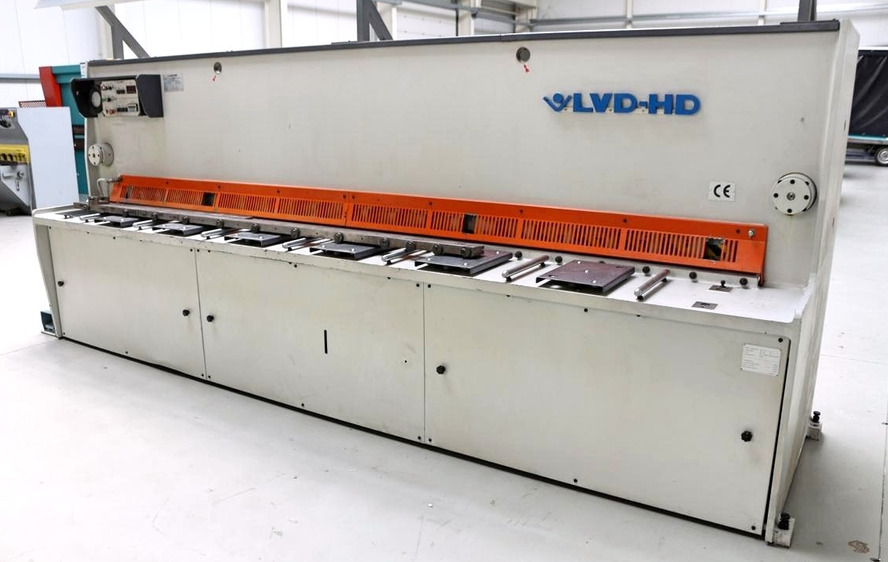

LVD CS 40/6

Sheet width: 4100 mm
Plate thickness: 6.35 mm
Stainless steel thickness: 4.00 mm
Cutting angle: 0.5–2.5 °
Cutting gap adjustment: 0.05–0.8 mm
Strokes per minute: 9–26 strokes/min
Backgauge adjustable range: 10–750 mm
Down holder quantity: 22 pcs
Oil volume: 200 l
Motor power: 7.5 kW
Machine weight: 8000 kg
Machine dimensions (L x W x H): 5145 x 2200 x 1750 mm
Control type: Conventional
Electro-hydraulic cutting angle adjustment: included
Digital actual value display: included
Manual cutting gap adjustment: included
Motorized backgauge with ball screws: included
Digital backgauge position display: included
Rapid traverse backgauge: included
Extra-long side stop (3000 mm) with support foot: included
Long support arm: included
Front finger guard: included
Rear sheet metal chute: included
Rear safety protection grille: included
Foot switch (movable): included
Machine lighting (front, custom): included
