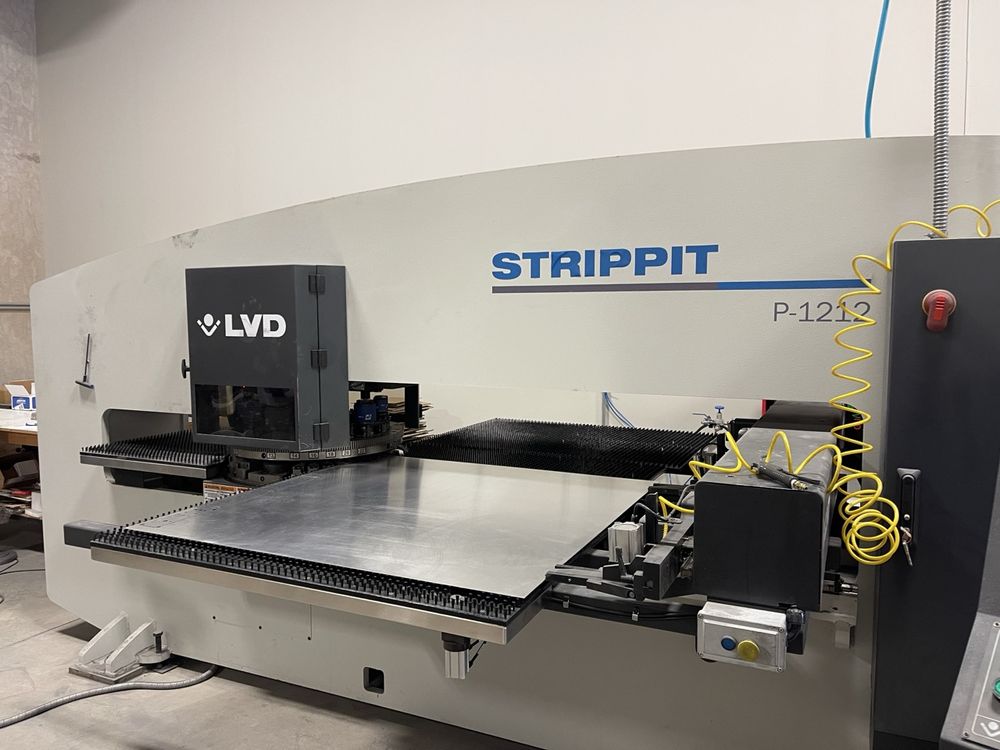

LVD P-1212 22 Ton

Press force 22 Ton
Turret stations 33

'A' stations 22
'A' station diameter 0.500"
'B' stations 6
'B' station diameter 1.250"
'C' stations 3
'C' station diameter 2"
'D' stations 2
'D' station diameter 3.500"

Fully indexable 'C' stations 3
Brush table included
Maximum material thickness 0.250" mild steel
Maximum press force 200 kN
Accuracy ±0.004"
Repeatability ±0.002"
Nominal workpiece size 49.2" x 49.2"
Max recommended workpiece size 98.4" x 49.2"

Brush table workpiece
capacity at 100% speed 81.5 lbs
capacity at 75% speed 90.4 lbs
capacity at 50% speed 134.1 lbs
capacity at 25% speed 160.9 lbs

Floating clamps 2 manual lock
Maximum clamp spread 37.4"
Machine width 100"
Machine height 82.47"
Machine depth 177.1"
Shipping weight 18,040 lbs
