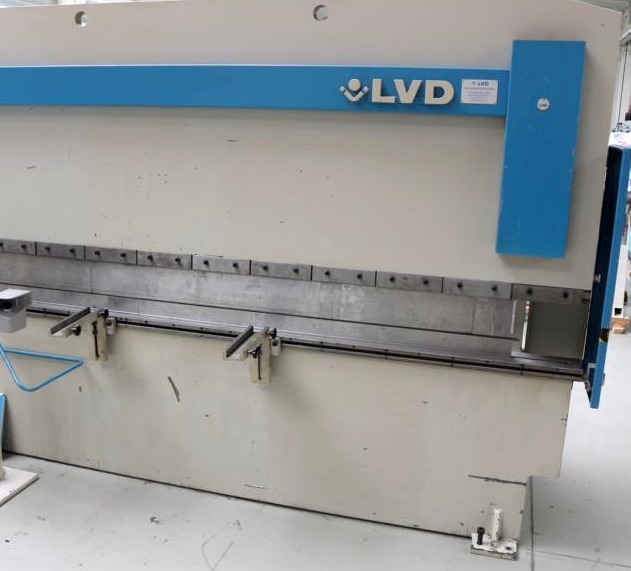

LVD PPBL-H 70/30 70.0 t

Pressure: 70.0 t
Chamfer length: 3050 mm
Distance between columns: 2550 mm
Table width: 140 mm
Column arm: 200 mm
Daylight: 300 mm
Piston stroke: 100 mm
Adjustment speed: 80.0 mm/sec
Working feed: 7.0 mm/sec
Return speed: 88.0 mm/sec
Work height max.: 755 mm
Voltage: 380 V
Oil volume: 70.0 l
Total power requirement: 5.0 kW
Weight: 4700 kg
Range L-W-H: 3500 x 1300 x 2100 mm

Simple conventional press brake
Manual material/backgauge
Adjustment from the front, via hand crank
With analog position indicator
2x manually adjustable stop fingers
LVD split upper tools
LVD split 1V lower tools
Includes die adapter rail (slot)
2x front, movable support arms
1x foot switch/2-hand control
Side guards (hinged doors)
Rear guards (hinged door)
Original operating instructions
