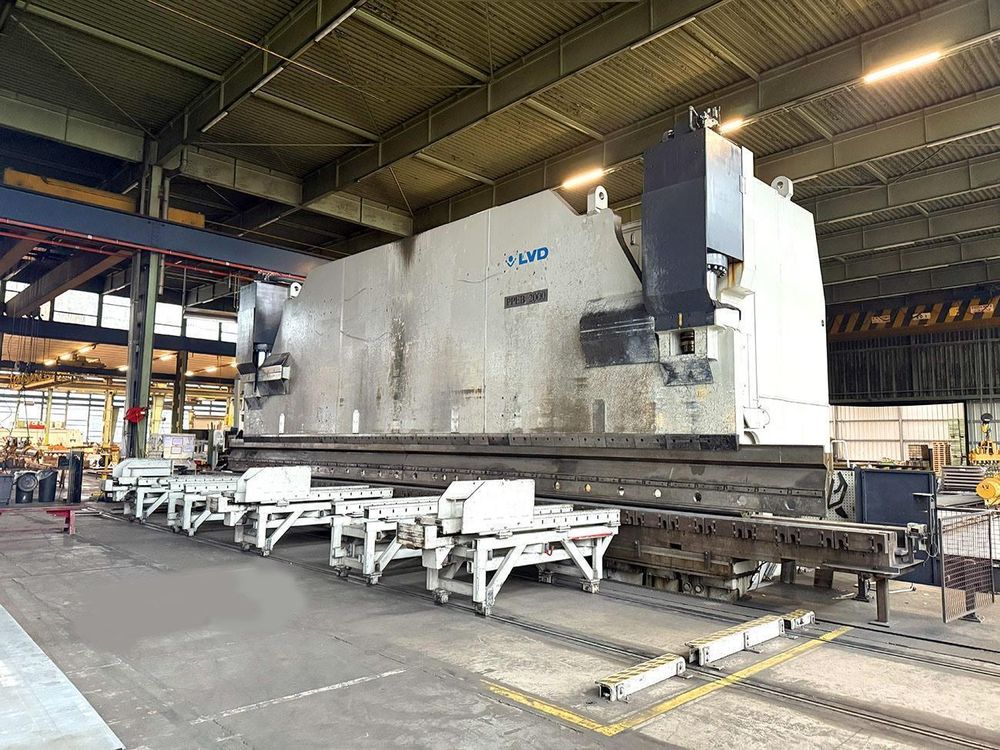

LVD PPEB 2000 ton x 14 meter CNC 2000 Ton

Ref : 2784168-3-CP

Condition : Used

Manufacturer : LVD

Model : PPEB 2000 ton x 14 meter CNC

Pressure : 2000 Ton

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Bending Length: 14,000 mm
Passage Between Uprights: 12,470 mm
Max. Stroke: 900 mm
Max. Distance Between Table and Ram: 1,600 mm
Throat Depth: 1,255 mm
Table Width: 800 mm
Locking Speed: 77 mm/sec
Working Speed: 9 mm/sec
Returning Speed: 85 mm/sec
Electric Motor Power: 2 x 90 kW
CNC Backgauge
Control: 2D Touch
Axes: Y1
Axes: Y2
Axes: X
Axes: R
Axes: Z
Axes: V
Axes: X1
Axes: X2
Axes: X3
CNC Controlled Front Plate Supports: 3
Machine Length: 16,835 mm
Machine Depth: 5,695 mm
Machine Height: 6,750 mm
Machine Weight: 370 ton
