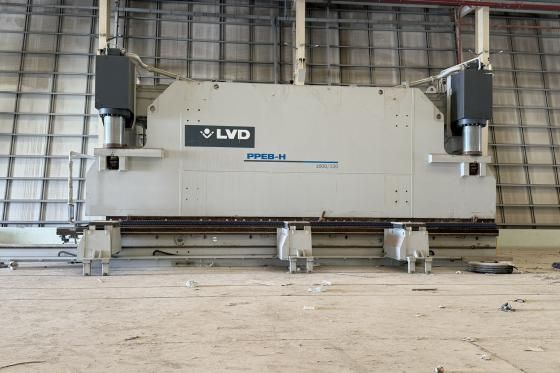

LVD PPEB-H 1600 T
Ref :
2789368-3-GO
Condition :
Used
Manufacturer :
LVD
Model :
PPEB-H
Pressure :
1600 T
Year(s) :
2016
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Max bending length: 12000 mm
Distance between columns: 10600 mm
Max pressing force: 1600 T
Beam stroke: 800 mm
Dis. beam to table: 1070 mm
Table width: 500 mm
Throat depth: 1000 mm
Backgauge adjustment (X-axis): 600 mm
Approach speed: 80 mm/min
Working speed: 9 mm/min
Return speed: 90 mm/min
Number of controlled axes: 15
Axes: Y1/Y2/X/Z1/Z2/Z3/R1/R2/R3/Delta1/Delta2/Delta3/T1/T2/T3
Control: CADMAN TOUCH
Crowning: Yes
Hydraulic tool clamping: Yes
Upper tooling set: LVD 505
Lower tooling set: Variable VLA 50–150 mm
Backgauge system: 3 × HH 2600 module
Support arms: front bending help support arm
Oil chiller: Thermotec GC25T-35 (max 2200 kPa)
Power: 125 kW
Machine weight: 277,500 kg
