LVD PPN 100 ton x 3100 mm 100 ton
Ref :
2748936-3-CP
Condition :
Used
Manufacturer :
LVD
Model :
PPN 100 ton x 3100 mm
Pressure :
100 ton
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

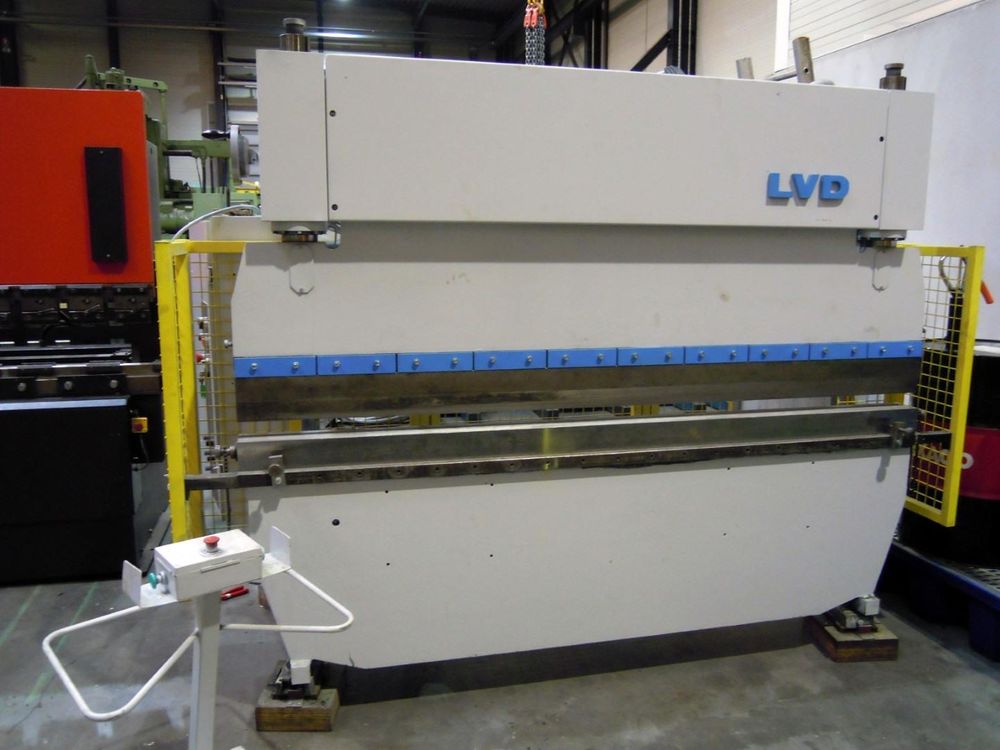

LVD PPN 100 ton x 3100 mm
Press force 100 ton
Bending length 3100 mm
Passage between uprights 2550 mm
Max stroke 120 mm
Max distance between table – ram 300 mm
Throat depth 200 mm
Table width 160 mm
Locking speed 90 mm/sec
Working speed 6.5 mm/sec
Returning speed 50 mm/sec
Electric motor power 5.5 kW
Weight 7.3 ton
Equipped with upper and lower Amada system tooling
Equipped with manual crowning table
