Lyle 240FM CPET

Ref : 2149775-6-MT
Condition : Used
Manufacturer : Lyle
Model : 240FM CPET
Year(s) : 2002
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)
Last check : 06 Jun. 2023

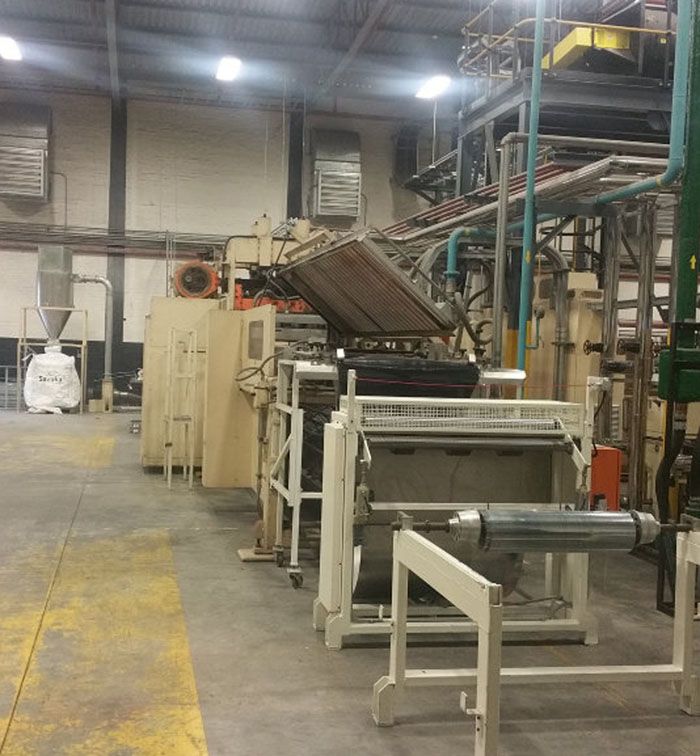

In Line thermoforming machine.
Oil heating/water cooling tool.
40" x 80" tool bed.
7" draw.
Forming pressure rating 150 tons.
Maximum dry cycle speed 35CPM.
Hot and Cold temperature control units for the mould
Lyle model 140PV in linehorizontall trim press.
Servo feed. 30 tons working capacity.
Platen driven by servo motor through gearbox.
13.5" x 40" platen opening.
Product discharge conveyor
Moving platen stroke of 9".
Standard speed 100cpm.
Stacking conveyor table Material handling;-
Conair grinder model CKF1831 (Rapid GK8045), with soundproofing,37KW drive motor, blow back fan
