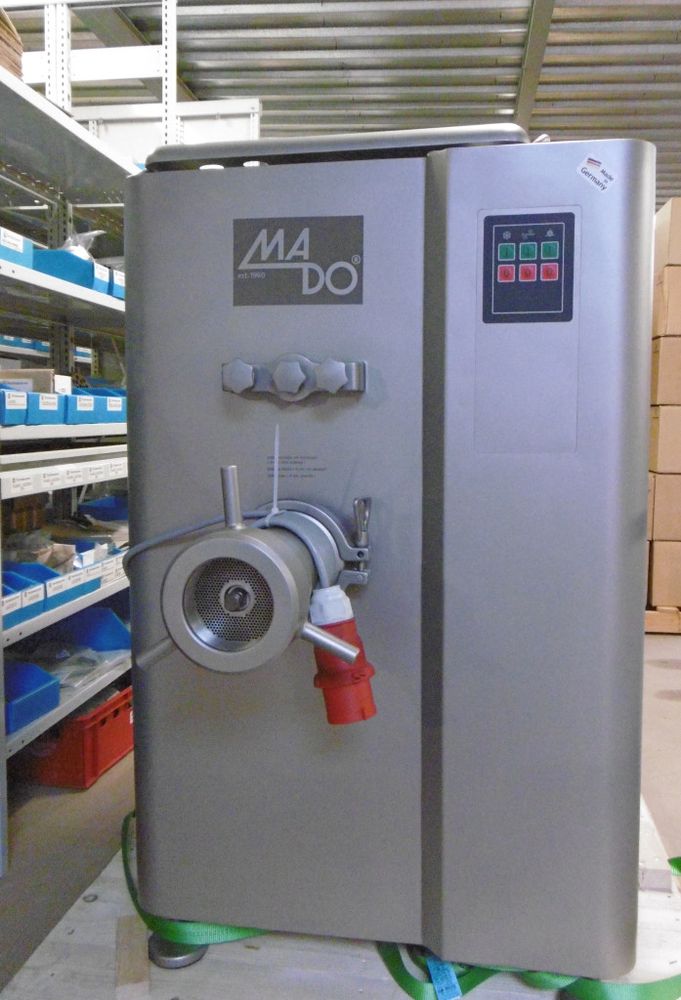

Mado MEW724-D114 MINCER

Machine suitable for grinding fresh meat
Machine construction in AISI 304 stainless steel, welded, micro-blasted finish
Body and grinding auger in AISI 304 stainless steel
Swivel-mounted, adjustable stainless steel machine feet with vibration dampers
Padlockable main switch and control panel integrated into the machine frame
Machine construction complies with current CE standards
Horizontal axis mixing system with blades, removable without tools
Hopper capacity: 120 liters
Machine rated power: 8.6 kW
Mixer drive unit rated power: 1.1 kW
Grinding auger drive unit rated power: 7.5 kW
Protective grille above Hopper with electrical safety device
Folding protective cover on the mincer outlet with electrical safety device and locking mechanism
Control panel equipped with push buttons with IP69 protection rating
UNGER D114 cutting system: 3 or 5 elements (pre-cutting, double-sided knife, intermediate grid, double-sided knife, final grid) Grid diameter to be determined
Maximum theoretical output: 1600 kg/hour
Machine dimensions (W x D x H): 830 x 1220 x 1250 mm
Electrical connection: 400 Volt, 3-phase + N - 50 Hz
Weight: approximately 400 kg
