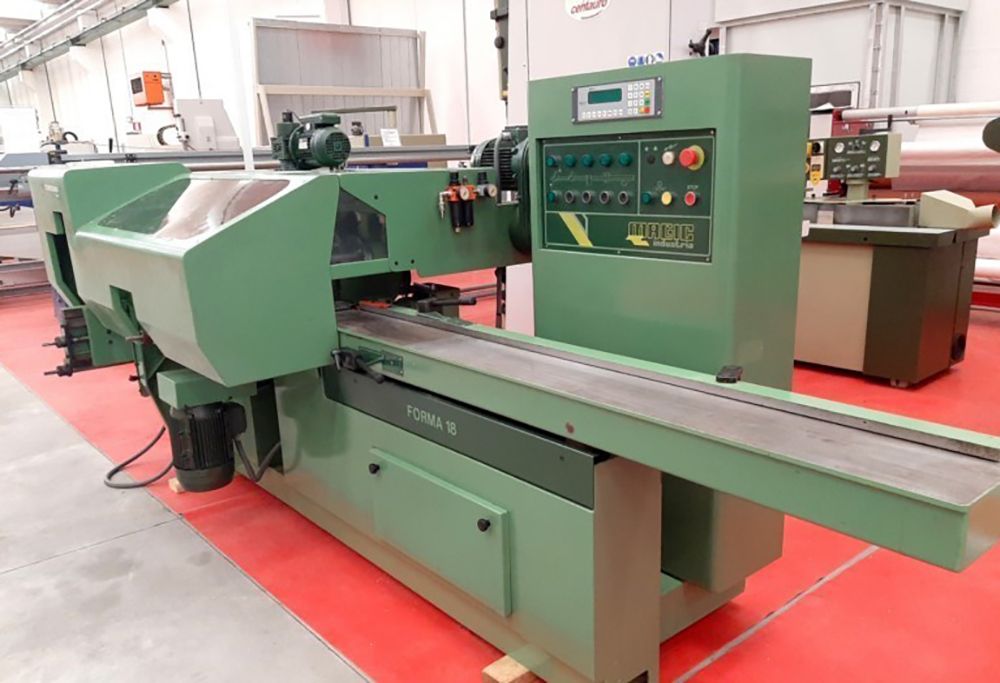

Magic FORMA 18 Milling cutter

The machine is in EXCELLENT CONDITION and FULLY FUNCTIONAL (after inspection in 2024)
Automatic programmed 5-spindle milling machine for wooden profiles, frames, furniture, doors and windows and more
Working width: 180 mm
Working height: 120 mm
Min. part length: 370 mm
Length of the input surface: 2000 mm

Shaft assembly:
1. lower shaft – 5.5 HP (4.5 kW) motor
2nd right shaft – 5.5 HP motor
3rd left shaft – 5.5 HP motor
4th upper shaft – 5.5 HP motor
5. universal shaft – 360°

Shaft diameter: 40 mm
Knife head diameter: 125 mm
Maximum tool diameter on 2nd/3rd/4th spindle: 160 mm
Feed speed variator: 4-24 m/min
2-axis electronic programmer with 99 memories
Pneumatic pressure on the towing device
Tools mounted on 4 planing shafts
Protective cabin
5 suction holes diameter: 120 mm
Compressed air: 7 bar
Overall dimensions: 3800 x 1400 x 1500 mm
Weight: 1700 kg
