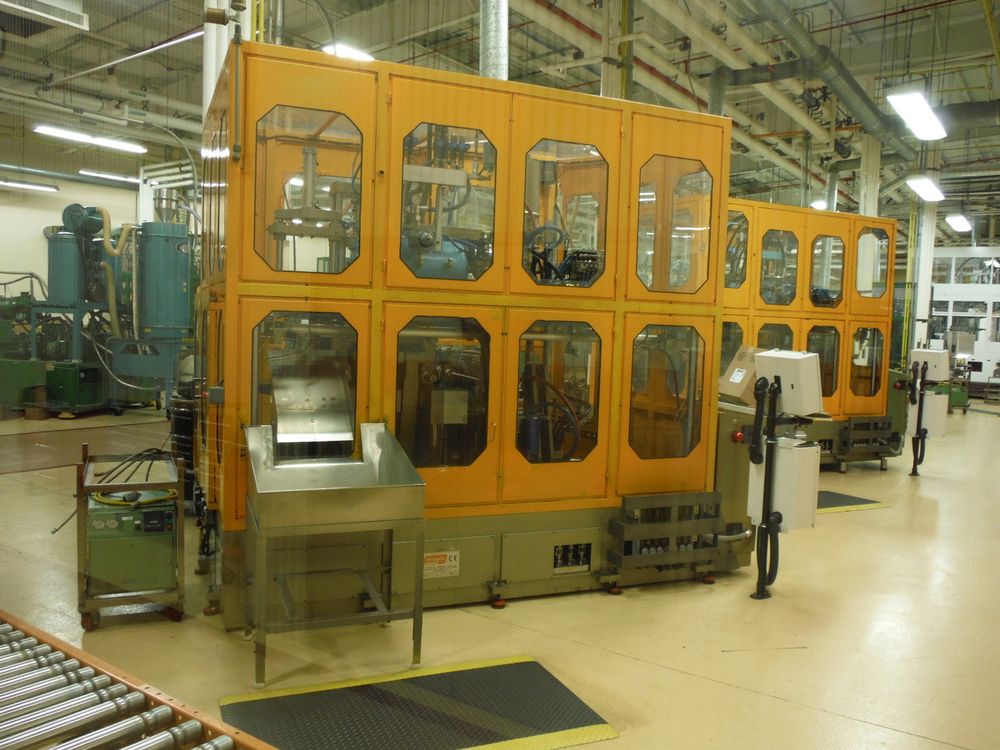

Magic VF 146/8 PET Injection Stretch Blow Molding Machine

Screw diameter- 54 mm
Injection capacity- 354 cc
Hydraulic motor- 26 Kw
Injection pressure- 1500 bar
Screw rpm- 0-170
Heating zones- 4
Heating power- 14.5 Kw
Plasticization capacity (@ 170 rpm)- 147 kg/hour

Injection station information:
Clamping force- 225 KN
Operating hydraulic pressure- 170 bar

Blow station information:
Maximum volume of container- 2000 cc
Clamping force- 300 KN
Dry cycle- 9 seconds
Operating hydraulic pressure- 160 bar
Opening stroke- 180 mm
Maximum mold dimensions (width x height x thickness)- 610 mm x 840 mm x 181 mm

Electric motor rating- 30 Kw
Type controller- Gefran
Number of operating hours- 72,864
Machine dimensions- length x width x height- (mm)- 4200 x 3600 x 3050
Machine weight- Approximately 25,000 pounds

Please inquire about other available components which include the following:
-Complete Hydraulic tank system
-Complete Injection press
-Complete Blow Mold Press
-Complete electrical control cabinet
-Complete Injection unit
-Electrical Parts, Electronic control items
-Hydraulic hoses
-Condition- Very Good, well maintained
