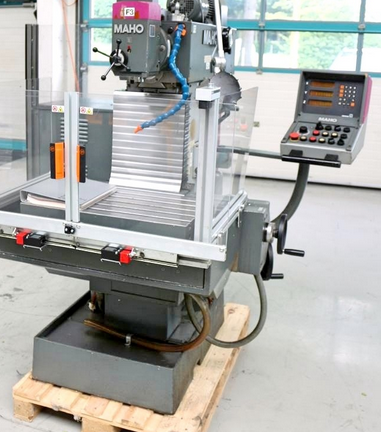

Maho MH 400 4000 rpm

Travel X: 400 mm
Travel Y: 375 mm
Travel Z: 350 mm
Control: DIGI VRZ 650
HEIDENHAIN Digital Display
Electro-Motorized Adjustment of X/Y/Z Axes
Rapid Traverse in All Axes
Manual Handwheel Adjustment
Infinitely Variable Speed Adjustment
Vertical Milling Head with Quill Adjustment
Coolant Device
Lower Chip Tray
Counter Support
Horizontal Milling Device
Halogen Machine Lighting
Central Lubrication
Original Operating Instructions
Spindle Speed: 63 - 4000 rpm
Spindle Taper: ISO 40
Pull Studs: ISO Type B
Quill Stroke: 50 mm
Table Size: 650 × 350 mm
Max. Workpiece Weight: 200 kg
T-Slots: 5 × 14H7
Feed Range: 10 - 1000 mm/min
Rapid Traverse: 1.5 / 1.0 m/min
Operating Hours: Approx. 504 h
Voltage: 380 V
Total Power Requirement: 8.0 kW
Machine Weight: 1550 kg
Machine Dimensions: 1640 × 1580 × 1840 mm
