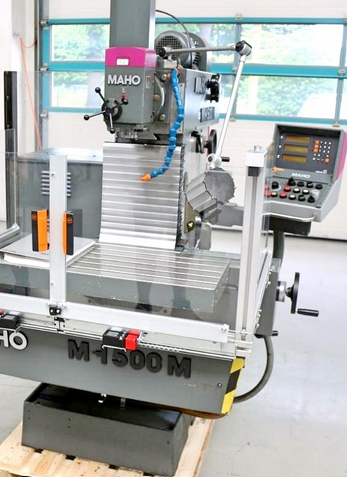

Maho MH 500 M 4000 rpm

Travel X: 500 mm
Travel Y: 380 mm
Travel Z: 350 mm
Control: DIGI VRZ 650
HEIDENHAIN Digital Display
Electro-Motorized Adjustment of X/Y/Z Axes
Rapid Traverse in All Axes
Manual Handwheel Adjustment
Infinitely Variable Speed Adjustment
Vertical Milling Head with Quill Adjustment
Automatic Tool Clamping with Clamping/Pull Bar
Coolant Device
Lower Chip Tray
Counter Support
Horizontal Milling Device
Halogen Machine Lighting
Central Lubrication
Original Operating Instructions
Tool Taper: ISO 40
Spindle Speed Range: 63 - 4000 rpm
Feed Range: 10 - 1000 mm/min
Quill Stroke: 50 mm
Table Load: Approx. 250 kg
Table Size: 800 × 360 mm
T-Slots: 14H7 - 5/63 mm
Rapid Traverse X-Axis: 1.5 m/min
Rapid Traverse Y-Axis: 1.0 m/min
Rapid Traverse Z-Axis: 1.5 m/min
Operating Hours: 810 h
Voltage: 380 V
Control Voltage: 110 V
Motor Power: 8.0 kW
Machine Weight: 1850 kg
Machine Dimensions: 1880 × 1796 × 1840 mm
