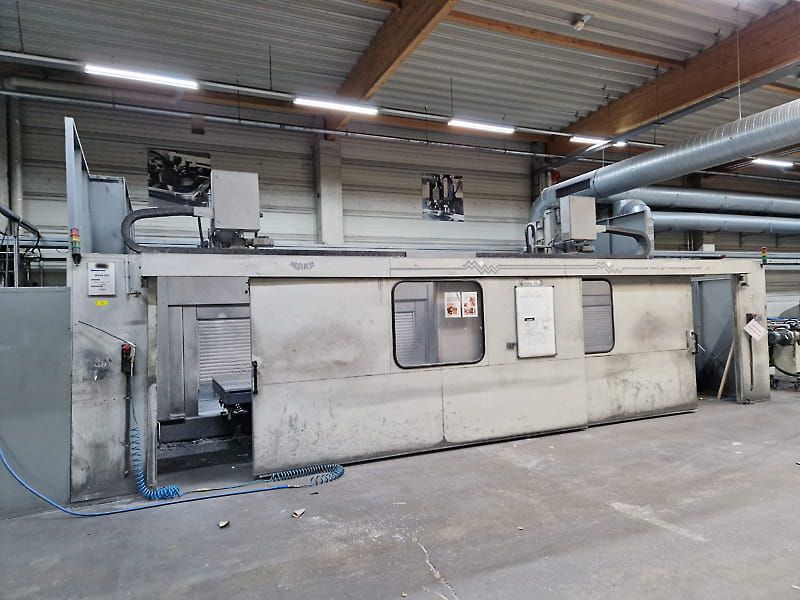

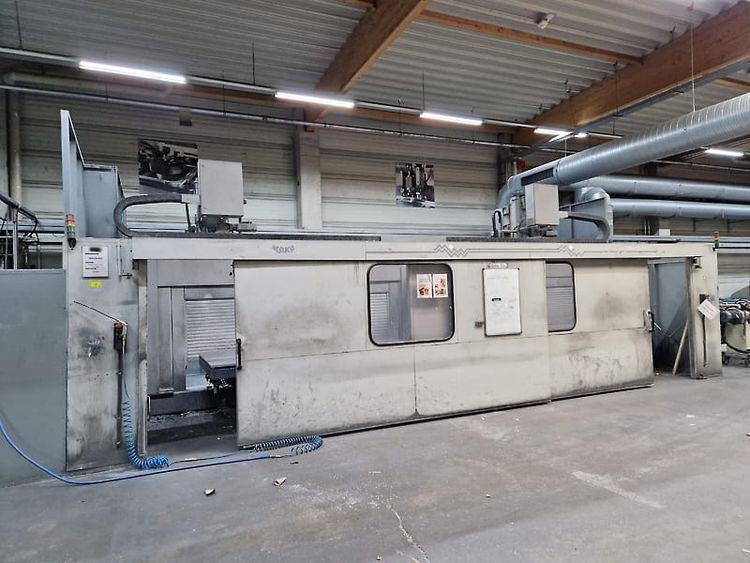

Maka MM 7t 5-axis

5-axis CNC machining center, in portal construction with two tables and two 5-axis unit units for alternating operation.
Technical data:
Machine designation:
• High-performance CNC milling center for 5-axis machining, ideal for machining aluminum components/draught parts/GRP parts.
• Equipped with automatic central lubrication and control cabinet with air conditioning unit.
• CNC control BWO 920, memory 8 MB, in integrated PC.
• Mobile control panel stand.

Version / Version:
Portal design with two tables and two 5-axis unit units for alternating operation

Work Areas / Cube Size:Work Areas / Dice Dimensions:
with tool length 130 mm and -Ø 60 mm
X-axis: 2 x 3,000 mm
Y-axis: 1.500 mm
Z-axis: 650 mm, at 120 mm height
A-axis: 540° (+/- 270°)
B-axis: 200° (+/- 100°)

Rapid travel speed:
X/Y axis: 60 m/min.
Z-axis: 24 m/min.
A/B axis: 10,000 °/min.

Equipment:
2 pieces high-speed milling spindle HSD 10 kW (S1), HSK-F63
Speed infinitely variable from 2,000 – 24,000 1/min.,
Nominal power from 12.000 1/min., with ceramic bearing, water-cooled.
Tool holder HSK-F63 with tool changing device.

1 piece of accompanying drum tool magazine per unit unit, for 10 tools up to Ø 60 mm
and – depending on the tool diameter – 130 mm length from the face system.
2 pieces of tables with aluminium table top 3,000 x 1,500 mm with grid bores.
1 piece pneumatic clamping circle per table.
1 piece of vacuum clamping circle per table.
2 pieces minimum quantity lubrication with spray nozzles.

Work safety:
2 pieces of sliding doors to be operated manually, for feeding from the front. In alternating operation,
the loading and unloading area is secured with two electrically driven roller shutters.
With protective cabin for the machine rear room, side access door, the cabin is open to the top.

Connection values:
Voltage: 400 V (max. +/- 5%) Frequency: 50 Hz
The use of a FI protection device in the machine supply line is not possible.
Installed power: approx. 31.5 kW
Operating temperature: 10 – 35° C
Pneumatics: 6 bar
