Maka MM 7t 5-axis

Name: 5-axis CNC machining center, in portal construction with two tables and two 5-axis unit units for alternating operation.
Offer type: Used machine

Technical data:
Machine designation:
• High-performance CNC milling center for 5-axis machining, ideal for machining aluminum components/draught parts/GRP parts.
• Equipped with automatic central lubrication and control cabinet with air conditioning unit.
• CNC control BWO 900C, integrated PC with 1MB memory and 3.5” floppy drive. Mobile control panel stand.

Version / Version:
Portal design with two tables and two 5-axis unit units for alternating operation

Work areas / cube size:
with tool length 130 mm and -Ø 60 mm
X-axis: 2 x 1,500 mm
Y-axis: 1.500 mm
Z-axis: 650 mm, at 120 mm height
A-axis: 540° (+/- 270°)
B-axis: 200° (+/- 100°)

Rapid travel speed:
X/Y axis: 60 m/min.
Z-axis: 24 m/min.
A/B axis: 10,000 °/min.

Equipment:
1 x universal unit for 5-axis milling with 90° head,
1 piece high-speed milling spindle HSD 8 kW, SK 30 (ISO 30)
Speed infinitely variable from 2,000 – 24,000 1/min.,
Nominal power from 12,000 1/min., air-cooled.
Tool holder SK 30 with tool changing device.

1 piece of accompanying drum tool magazine per unit unit, for 10 tools up to Ø 60 mm
and – depending on the tool diameter – 130 mm length from the face system.

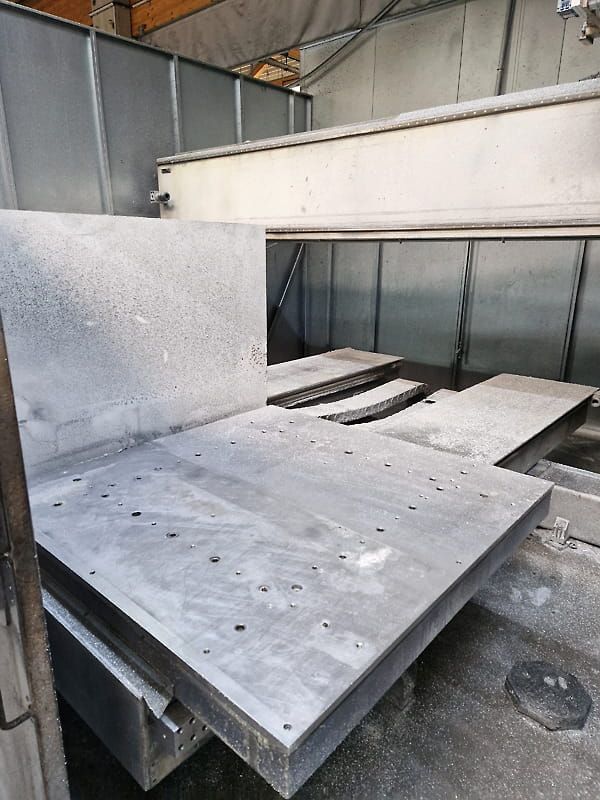

2 tables with aluminium table top 1,500 x 1,500 mm with grid holes. The tables can be coupled for machining larger components.
1 piece pneumatic clamping circle per table.
1 piece of vacuum clamping circle per table.
1 piece minimum quantity lubrication with spray nozzles.

Work safety:
2 pieces of sliding doors to be operated manually, for feeding from the front.
With partition between the tables.
With protective cabin for the machine rear room, side access door, the cabin is open to the top.

Connection values:
Voltage: 400 V (max. +/- 5%) Frequency: 50 Hz
The use of a FI protection device in the machine supply line is not possible.
Installed power: approx. 16 kW
Operating temperature: 10 – 35° C
Pneumatics: 6 bar
