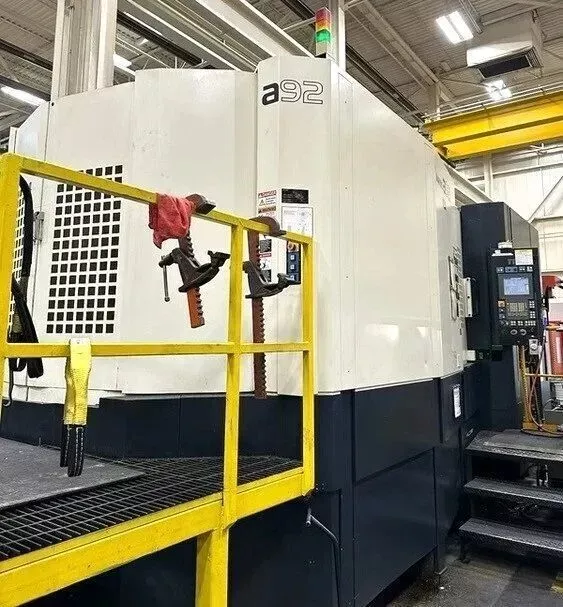

Makino A-92 3 Axis

MAKINO A-92
2011

X-axis travel 59.8"
Y-axis travel 49.2"
Z-axis travel 53.15"
Spindle taper CAT 50
Spindle motor 35 HP
Spindle speed 10000 RPM
Maximum workpiece size 59" x 59"
Rapid traverse 1969 IPM
Tool capacity 92
Number of pallets 2
Pallet size width 31.5"
Pallet size length 39.4"
Number of axes 4
Pallet load capacity 6600 lbs
Pallet table indexing resolution 0.001°
Part probe yes
Tool probe yes
Auto tool length measure yes
High-pressure coolant system 300 PSI
Chip conveyor yes
Control Makino Professional 5
Machine dimensions 367" x 248.9"
Machine weight 75000 lbs
Spindle center to top of pallet 3.9" to 53.15"
Spindle nose to center of pallet 5.9" to 59"
Spindle motor power (15 min / continuous) 46.9 / 33.5 kW
Time to full rapid 280 milliseconds
Distance to full rapid 4.6"
Feedrate 1969 IPM
Axis thrust capacity continuous 3250 lbs
Axis thrust capacity max 10780 lbs
Drive type AC digital servo motor
Ball screw diameter 45 mm
Ball screw cooling core cooled
Axis motor 9.4 HP x2
Linear guide protection stainless steel covers
High-pressure coolant through spindle
Coolant tank included
Renishaw probing
Chip blaster included
Spindle chiller included
Air dryer included
Two-position pallet changer with enclosed work setting station
Lift-up chip conveyor
Ball screw core cooling
Professional 5 control with 4MB data server
USB spindle load monitor
92-tool ATC servo driven with loading station
Table washing coolant system
Automatic air blower nozzle
1000 PSI chip blaster through spindle
Air/oil mist unit
Program storage 640M
500 registered programs
High-speed skip function
600 macro common variables
Enhanced SGI
Tool offset pairs
Tool offset memory type C
48 work offsets
Additional block skip
Handle interruption
Program restart
Automatic Z-axis retract and restart
Tool center point control for 5-axis machining
Tilted working plane command
2GM memory upgrade
Hydro modification and inspections
Upgraded table capacity to 6600 lbs
Installed new in 2012
