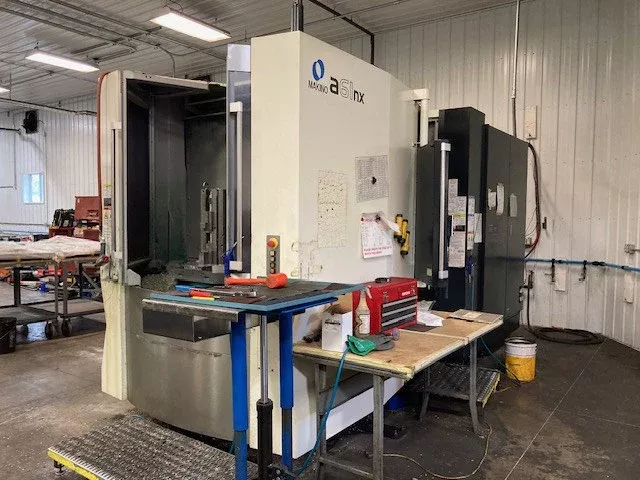

Makino A61NX 4 Axis

MAKINO A61NX
Year: 2011


Pallet Size: 19.7" x 19.7"
Number Of Pallets: 2
Pallet Weight Capacity: 1100 Lbs.
Pallet Surface to Spindle Center: 3.15" ~ 28.7"
Pallet Center To Spindle Gage Line: 3.9" ~ 31.8"
Workpiece Dimensions: 31.4" x 39.3"
X - Axis Travel: 28.7"
Y - Axis Travel: 25.6"
Z - Axis Travel: 31.5"
B - Axis Travel: .001 Indexing
Rapid Traverse Rates X, Y, Z: 1968, 1968, 1968 IPM
Rapid Traverse Rate B Axis: 0
Cutting Feed Rate: 1968 IPM
Spindle Speed: 14000 RPM
Spindle Taper: 40
Number Of Ranges: 0
Main Motor: 30 HP
Automatic Tool Changer: 134 ATC
Tool Diameter: 3.76" / 6.7"
Tool Length: 20
Tool Weight: 24 Lbs.
Tool Change Time: .9 seconds
Machine Weight: 26400 Lbs.

FANUC 31I CNC CONTROL WITH PRO 5
FULL 4TH AXIS N/C ROTARY TABLE
CHIP REMOVAL SYSTEM
PRO 5 CONTROL
BROKEN TOOL SENSOR BTS
PORTABLE HAND HELD MPG
RIGID TAPPING
GI CONTROL
AIR DRYER SYSTEM
JV 40 HIGH PRESSURE COOLANT CHIP BLASTER
MIST BUSTER
CUSTOM MACRO/COMMON VARIABLE 600
HIGH SPEED SKIP FUNCTION
134 ATC MATRIX
NC4 TOOL LENGTH LASER PROBE
16,400 FT OF MEMORY
TOOL OFFSETS 200 PAIRS
RENISHAW OMP 400 SPINDLE PROBE
