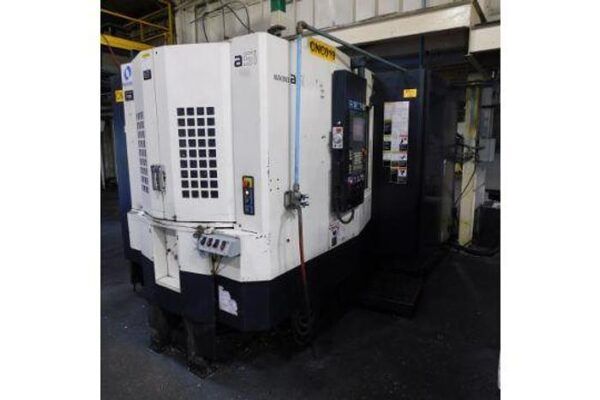

Makino A51 4 Axis

X Axis travel: 22 in
Y Axis travel: 22 in
Z Axis travel: 19.7 in
4th Axis rotation: 0.001° full 4th rotation
Control: Pro5 CNC
Pallet size: 15.7 x 15.7 in (2 pallets)
Pallet weight capacity: 880 lbs
Spindle motor: 25 HP
Spindle speed: 14,000 RPM
Spindle taper: CT#40
ATC capacity: 60
Chip to chip time: 2.2 sec
Rapid traverse rate: 2,362 IPM
Machine weight: 17,200 lbs
Spindle chiller: yes
Lift up chip conveyor/coolant tank: yes
Over the top hydraulics: yes
Chip augers: yes
Helical interpolation: yes
Spindle hours: 12,636 h
