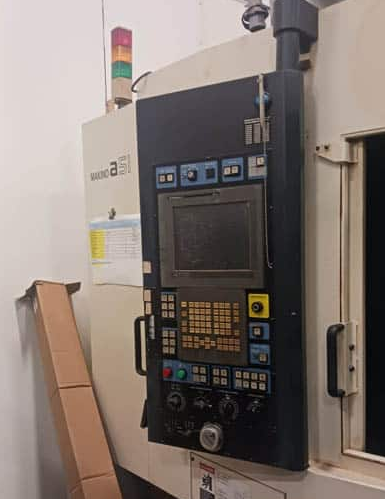

Makino A51 CNC Horizontal Machining Center 4 Axis

X-axis travel 22″
Y-axis travel 22″
Z-axis travel 23.6″
Table load capacity 880 LBS
Pallet size 15.7″ x 15.7″
Table indexing 0.001 DEGREE
Spindle center to table top 22.44″
Spindle nose to table center 2.760″
Spindle drive motor 25 HP AC
Spindle taper #40
Spindle speeds 14,000 RPM
Rapid traverse X,Y,Z 1574 IPM
Cutting feedrate 630 IPM
Auto tool change capacity 60 ATC
Max tool diameter with adjacent pockets empty 3.5″
Max tool weight 26.5 LBS
Machine weight 18,800 LBS
Control Professional 5 CNC
Full 4th axis
Chip conveyor
Tombstones included
