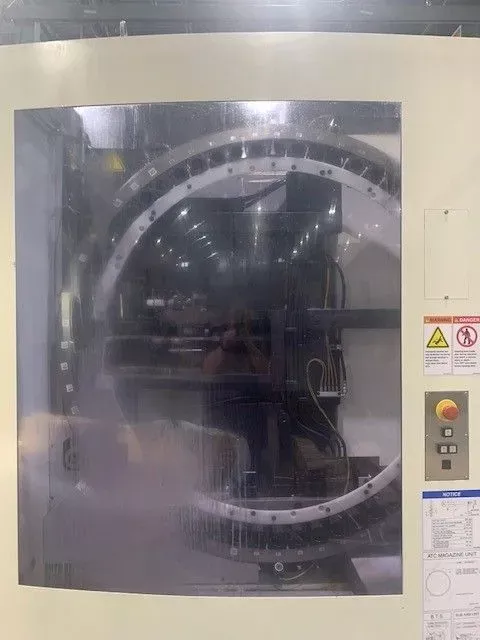

Makino A51NX 4 Axis

X-Axis Travel: 22"
Y-Axis Travel: 25.2"
Z-Axis Travel: 25.2"
B-Axis Travel: .0001
Control: FANUC 31i CNC with PRO 5
Table-L: 15.7"
Table-W: 15.7"
Number of Pallets: 2
Pallet Weight Capacity: 880 lb
Pallet Surface to Spindle Center: 3.1" ~ 28.3"
Pallet Center to Spindle Gage Line: 3.9" ~ 29.1"
Rapid Traverse Rate - X: 2,360 in/min
Rapid Traverse Rate - Y: 2,360 in/min
Rapid Traverse Rate - Z: 2,360 in/min
Cutting Feed Rate: 1,968 in/sec
Spindle Speed: 14,000 RPM
Spindle Taper: 40
Main Motor: 30 hp
Automatic Tool Changer: 60
Tool Diameter: 3.7", 6.7"
Tool Length: 16.9"
Tool Weight: 26.4 lb
Tool Change Time: 0.9 sec
Machine Weight: 19,620 lb
12.1" Color LCD / 320 Meters
200 Programs
Data Center 4MB
Full 4th Axis N/C Rotary Table
Ball Screw Core Cooling
200 Tool Offsets
Tool Offset Memory C
Helical Interpolation
High Speed Skip Functions
Custom Macro 100 Variables
Portable Hand Held MPG
External Setting Orientation
2-Pallet Changer
Chip Removal System
Coolant Thru Spindle 1000 PSI
Renishaw Part Probe
