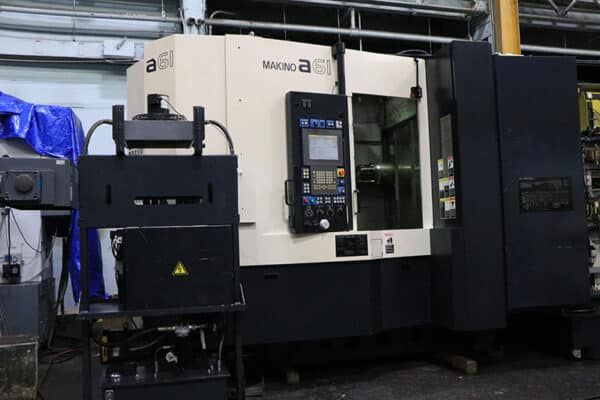

Makino A61 4 Axis

X-axis travel 28.7″
Y-axis travel 25.6″
Z-axis travel 28.7″
Spindle nose to pallet center distance 2.76″ – 31.5″
Spindle center to pallet distance 3.15″ – 28.74″
Rapid traverse rate (X/Y/Z) 1,960 IPM
Max cutting feed rate 1,960 IPM
Pallet indexing full 4th axis (.001)
Number of pallet stations 2
Max pallet load 1,540 lbs
Pallet change time 8 seconds
Control Professional 5 CNC
Through-spindle coolant
Chiller
Spindle taper HSK 63
Spindle speeds 0 – 12,000 RPM
Spindle drive 25 hp high-power spindle drive
Toolchanger capacity 134 stations
Max tool weight 26.4 lbs
Max tool length 14.17″
Max tool diameter 2.76″ / 6.69″
Tool to tool time 0.9 seconds
Chip conveyor
Approximate machine dimensions 90″L x 178″W x 117″H
Approximate weight 20,900 lbs
