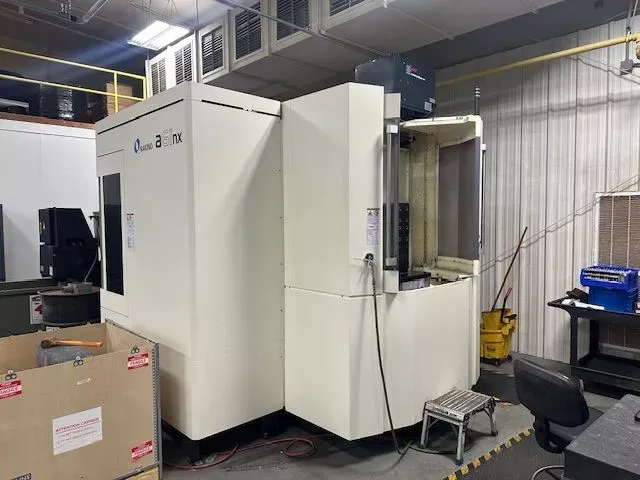

Makino A61NX 4 Axis

X-Axis Travel: 28.7"
Y-Axis Travel: 25.6"
Z-Axis Travel: 31.5"
Rapid Traverse Rate - X: 2,362 in/min.
Rapid Traverse Rate - Y: 2,362 ipm
Rapid Traverse Rate - Z: 2,361 ipm
Cutting Feed Rate: 1,968 in/sec.
B-Axis Travel: .0001 N/C ROTARY
Full 4th axis rotary table
DD Motortable indexing, direct drive
CNC FANUC 310I B with PRO 6 control
Advanced sensors
BTSOMA broken tool sensor ATC
Marposs tool length measurement laser system
Renishaw OMP 600 part probe system
GI control
Spindle table crash avoidance
Helical interpolation
400 pairs tool offsets
3GB program storage
4 MB data center
54 pairs work coordinates
Coolant thru spindle 300PSI
Overhead shower coolant
Ball screw core cooling
Air dryer system IDFA6E
3 point level system
Climate controlled machining area
Chip removal system
Spindle Speed: 14,000 RPM
Spindle Taper: BIG PLUS 40 CT
Main Motor: 49.6 hp
Automatic Tool Changer: 60
Tool Diameter: 3.76" / 6.7"
Tool Length: 20"
Tool Weight: 26.4 lb
Tool Change Time: 0.9 sec.
Pallet Size - L: 19.7"
Pallet Size - W: 19.7"
Number of Pallets: 2
Pallet Weight Capacity: 1,200 lb
Pallet Surface to Spindle Center: 3.14" ~ 31.4"
Pallet Center To Spindle Gage Line: 3.93" ~ 35.4"
Workpiece Dimensions: 31.4" X 39.3"
Machine Weight: 26,900 lb
2476 cutting hours
(1) spare pallet and 2 sided tombstone
