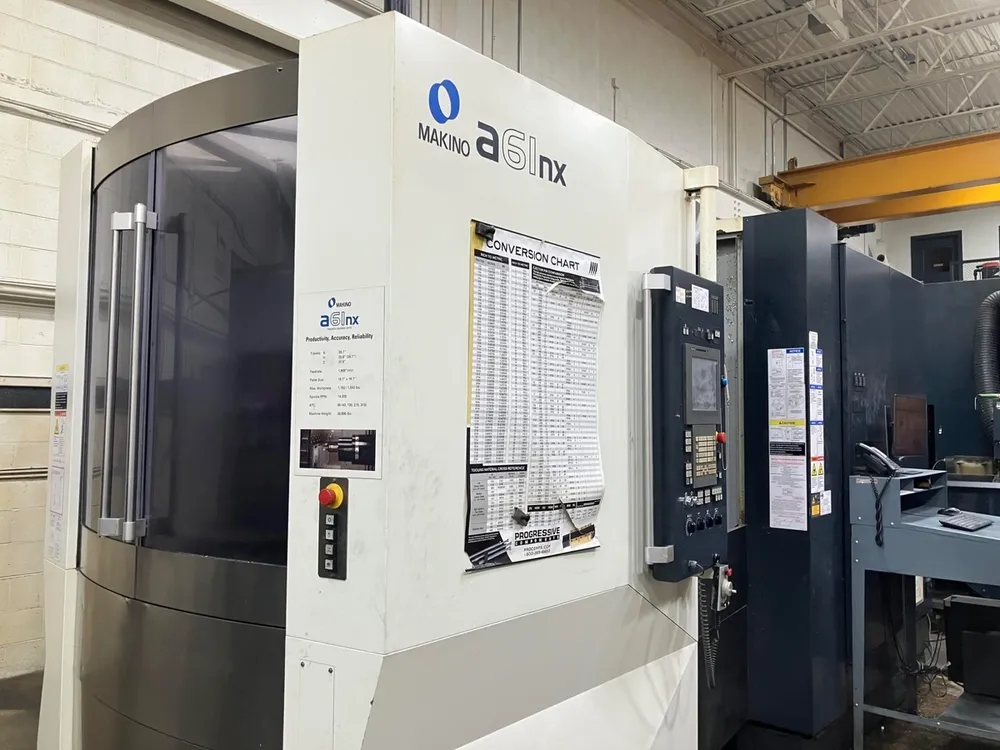

Makino A61NX 4 Axis

X-axis travel: 28.7 in
Y-axis travel: 25.6 in
Z-axis travel: 31.5 in
B-axis travel: 0.001 deg
Pallet size (L): 19.7 in
Pallet size (W): 19.7 in
Number of pallets: 2
Pallet weight capacity: 1100 lb
Pallet surface to spindle center: 3.15–28.7 in
Pallet center to spindle gage line: 3.9–31.8 in
Workpiece dimensions: 31.4 × 39.3 in
Rapid traverse X: 1968 ipm
Rapid traverse Y: 1968 ipm
Rapid traverse Z: 1968 ipm
Cutting feed rate: 1968 in/sec
Spindle speed: 14000 RPM
Spindle taper: HSK A63
Spindle motor: 30 hp
ATC capacity: 60 tools
Tool diameter: 3.76 / 6.7 in
Tool length: 20 in
Tool weight: 24 lb
Tool change time: 0.9 sec
Machine weight: 26400 lb
Control: CNC
Total weight: 27000 lb
4-axis configuration
High-pressure coolant system
Chip removal system
Renishaw spindle probe
Blum tool length laser probe
Broken tool sensor
Rigid tapping
Handheld MPG
Air dryer system
