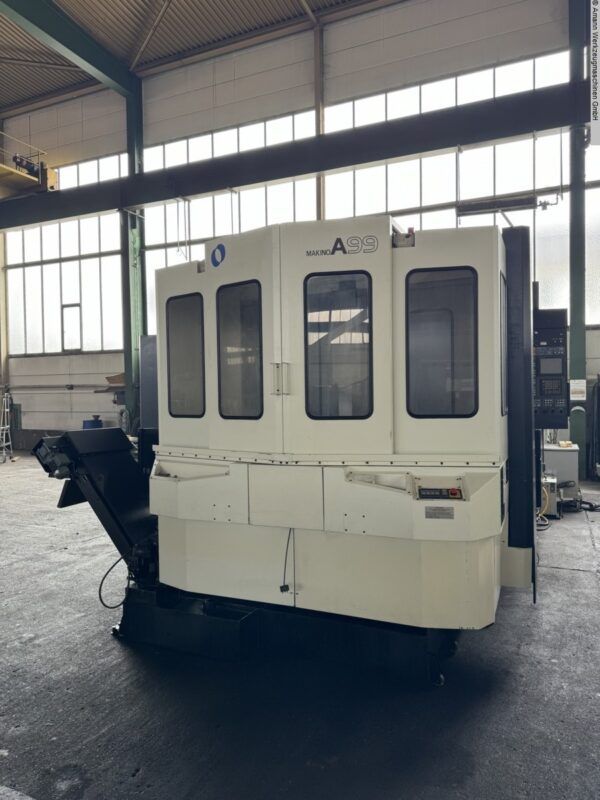

Makino A99-A188 4 Axis

X-axis travel: 1000 mm
Y-axis travel: 1000 mm
Z-axis travel: 950 mm
B-axis: 360 × 0.001°
Control: FANUC Pro-3
NC rotary table
Electronic handwheel
Chip conveyor
Coolant filter KNOLL VRF 450/2300
Through-spindle coolant
188-station tool magazine
New spindle in 2023
Machine can be inspected under power
Feed X/Y/Z axis: 1 – 50,000 mm/min
Rapid traverse X/Y/Z: 50 m/min
Tool taper: HSK-A100
Spindle speed: 20 – 12,000 rpm
Spindle drive: 25 / 30 kW
Spindle torque: 420 Nm
Front spindle bearing diameter: 110 mm
Pallet size: 2 × 800 × 800 mm
Table load capacity: 1,800 kg
Max workpiece size: 1,000 × 950 mm
Max workpiece height: 1,000 mm
Tool magazine capacity: 188 tools
Max tool length: 475 mm
Max tool diameter: 320 mm
Max tool weight: 20 kg
