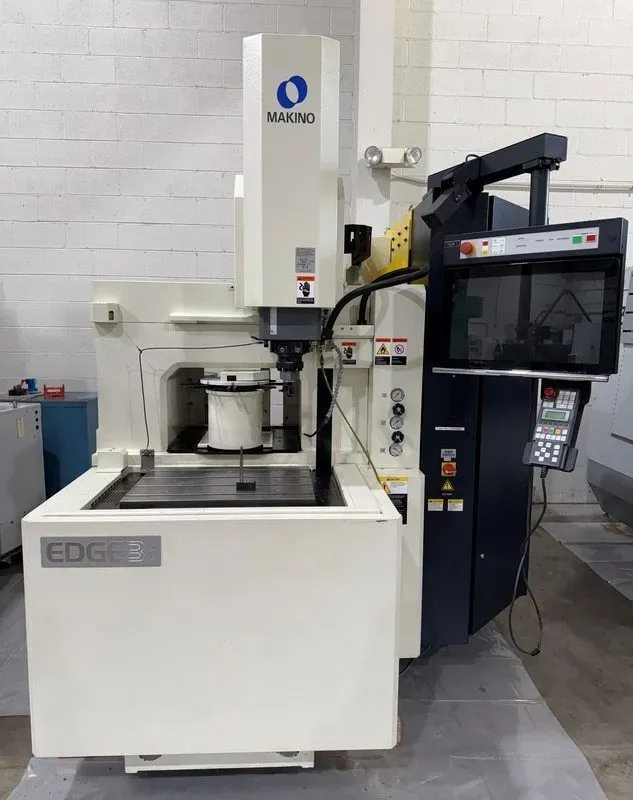

Makino EDGE3i CNC Sinker EDM

X Axis Travel: 17.7"
Y Axis Travel: 11.8"
Z Axis Travel: 12.6"
C Axis: Built-In MR Head

Rapid Traverse: 197 IPM
Table Size: 23.6" x 17.7"
Table Surface Height: 35.04"
T-Slots: 0.55" x 4
Max Workpiece Weight: 1,764 lbs

Work Tank Inside Dimensions: 31.5" x 21.6" x 13.8"
Programmable Rise & Fall Work Tank

Automatic Tool Changer Capacity: 8
Tool Select: Random or Sequential
Tool Change Time: 60 sec (avg)

Power Supply Max Current: 60 Amps (80 Peak Amps)
Dual Voltage Output: Yes
Available Amperage: 80A

Di-Electric Reservoir Capacity: 100 Gal
Filter Type: External Pressure-Type Paper Filter
Filter Elements: 2

Electrics: 480V / 3Ph / 60Hz
Dimensions: 91" x 83" x 98"
Machine Weight: 11,000 lbs

Equipped With:
Makino Hyper-i CNC Control with 24" HD Touchscreen
Makino IES (Intelligent Expert System)
Makino MR Head (C-Axis)
8 Position ATC
HyperCut
HyperConnect
SuperSpark4, SuperSurface & SuperEdge Technologies
UV Flame Sensor
Ethernet
USB Interface
Integrated Di-Electric Reservoir
Di-Electric Chiller Unit
Centering Probe
System 3R Tooling
Fire Suppression System
LED Work Light
Power Supply Line Filter
Manuals & Drawings
