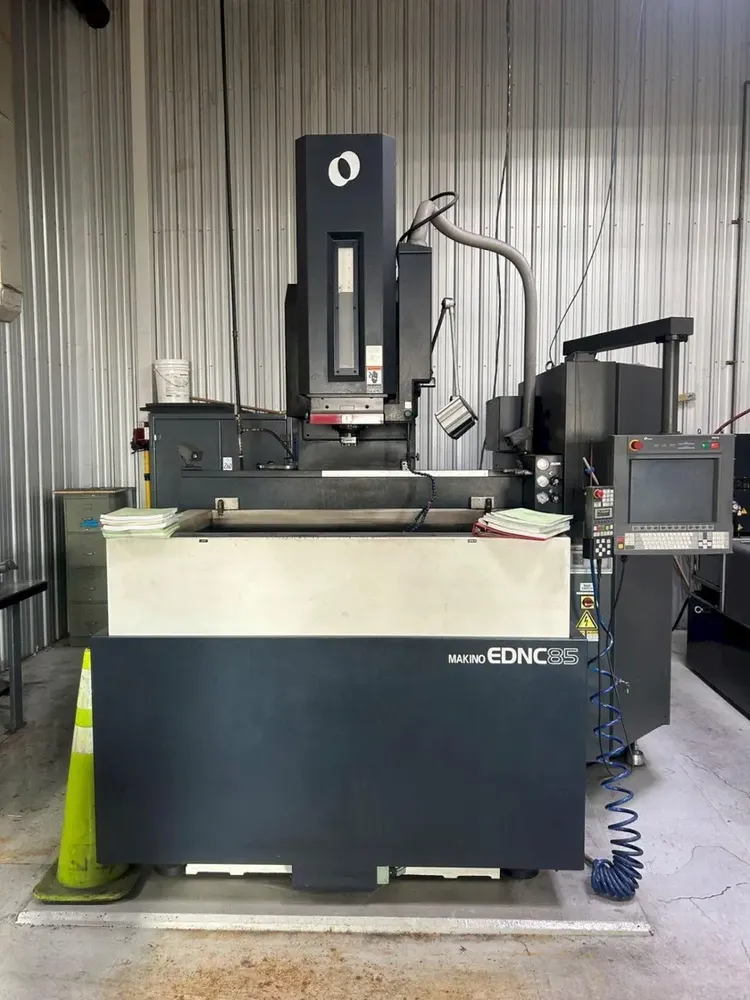

Makino EDNC85

X-Axis travel: 31.49"
Y-Axis travel: 19.68"
Z-Axis travel: 15.74"
X-Axis rapid traverse rate: 16.4 ft/min
C-Axis rotation: 360°
Makino MGH6 CNC Control
System 3R electrode holder
Drop tank design
Fluid chiller
Transformer
Internal work tank width: 55.1"
Internal work tank depth: 35.4"
Internal work tank height: 19.68"
Table size: 43.3" x 27.55"
Maximum workpiece weight: 6615 lb
Dielectric fluid capacity: 317 gal
Electrode plate size: 11.81" x 11.81"
Maximum electrode weight: 661 lb
Dielectric fluid level adjustment range: 17.71"
Feed least input: 0.00004"
6" x 12" Walker magnetic chuck
Dimensions: 120" x 144" x 144"
Weight: 15000 lbs
